RF9L120BKFRATCR

$1.02

Description：NCH 60V 12A, DFN2020Y7LSAA, POWE
Series：-
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:eeb547e685e8 Category: Single FETs, MOSFETs Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RF9L120BKFRATCR is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is NCH 60V 12A, DFN2020Y7LSAA, POWE. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for RF9L120BKFRATCR

Description：NCH 60V 12A, DFN2020Y7LSAA, POWE
Series：-
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：-
Technology：-
Drain to Source Voltage (Vdss)：-
Current - Continuous Drain (Id) @ 25°C：-
Drive Voltage (Max Rds On, Min Rds On)：-
Rds On (Max) @ Id, Vgs：-
Vgs(th) (Max) @ Id：-
Gate Charge (Qg) (Max) @ Vgs：-
Vgs (Max)：-
Input Capacitance (Ciss) (Max) @ Vds：-
FET Feature：-
Power Dissipation (Max)：-
Operating Temperature：-
Grade：-
Qualification：-
Mounting Type：-
Supplier Device Package：-
Package / Case：-

Single FETs, MOSFETs datasheet and documents for RF9L120BKFRATCR

RF9L120BKFRATCR

Single FETs, MOSFETs Overview

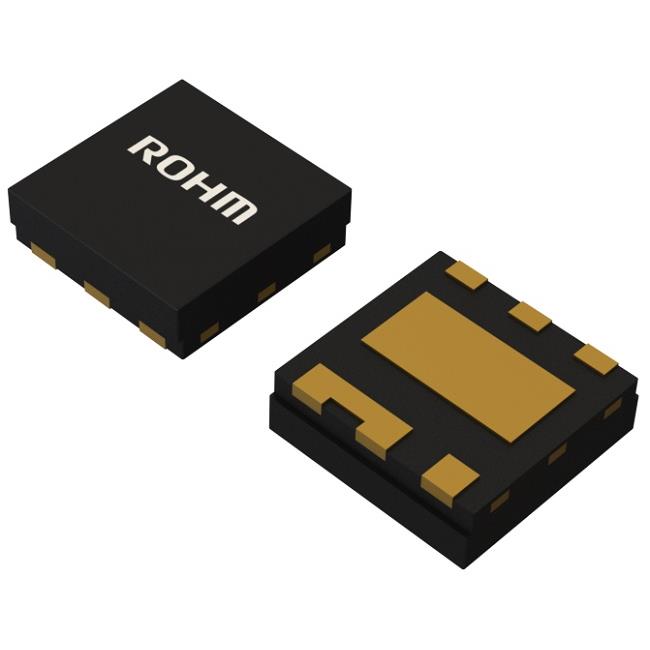

The RF9L120BKFRATCR is a single N-channel power MOSFET manufactured by ROHM Semiconductor. It features a DFN2020Y7LSAA surface-mount package and operates with a drain-source voltage of 60V and a continuous drain current of ±12A at VGS=10V. The device achieves a maximum on-state resistance of 30mΩ at VGS=10V and 42mΩ at VGS=4.5V. It supports a power dissipation of 23W, a junction temperature up to 150°C, and an operating range from -55°C to +150°C. Total gate charge is typically 4.2nC at VGS=4.5V.

Single FETs, MOSFETs Feature Summary

AEC-Q101 qualified for automotive reliability standards
Low on-resistance achieved through split gate technology
High power density in a compact small mold package
Wettable flank design for enhanced solder joint inspection

Single FETs, MOSFETs Applications

Advanced Driver Assistance Systems (ADAS)
Automotive infotainment systems
Vehicle lighting circuits
Body electronics applications

Single FETs, MOSFETs Procurement Notes

Verify the complete part number including the TCR taping code suffix against official ROHM documentation before procurement. Confirm that the specific reel size and tape width match your automated assembly equipment requirements. Ensure storage conditions remain within specified humidity and temperature limits to maintain solderability prior to mounting.

Single FETs, MOSFETs Selection Notes

Select this component when a 60V rating and 12A continuous current capacity are required for automotive-grade applications. The low thermal resistance and high power dissipation capability support efficient heat management in confined spaces. Verify that the drive voltage aligns with the desired on-resistance performance characteristics.

Single FETs, MOSFETs Part Context

This device belongs to the RF9L120BKFRA series of automotive power MOSFETs. It utilizes a DFN2020Y7LSAA footprint designed for surface mount technology. The product line emphasizes low conduction losses and robust thermal performance for demanding vehicle electronic environments.
