Product Detailed Parameters

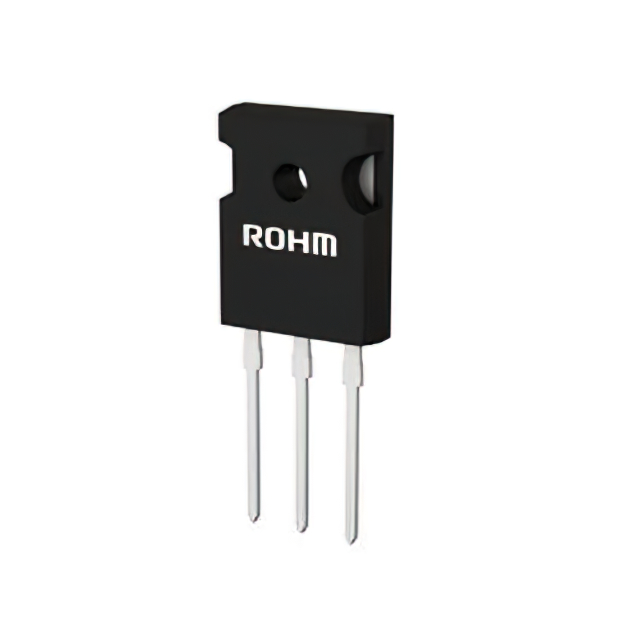

- Description：IGBT TRENCH FS 650V 132A TO247GE
- Series：-
- Mfr：Rohm Semiconductor
- Package：Tube
- IGBT Type：Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max)：650 V
- Current - Collector (Ic) (Max)：132 A
- Current - Collector Pulsed (Icm)：300 A
- Vce(on) (Max) @ Vge, Ic：1.9V @ 15V, 75A
- Power - Max：348 W
- Switching Energy：2.39mJ (on), 1.68mJ (off)
- Input Type：Standard
- Gate Charge：213 nC
- Td (on/off) @ 25°C：64ns/229ns
- Test Condition：400V, 75A, 10Ohm, 15V
- Reverse Recovery Time (trr)：-
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Through Hole
- Package / Case：TO-247-3
- Supplier Device Package：TO-247GE
- Grade：-
- Qualification：-
Download product information
Overview
The RGWX5TS65GC13 is a Field Stop Trench IGBT manufactured by ROHM Semiconductor, designed for high-efficiency power conversion. It features a 650V collector-emitter voltage rating and supports a continuous collector current of 75A at 25°C. The device utilizes a TO-247N-3 through-hole package with a maximum power dissipation of 348W. Key electrical parameters include a typical collector-emitter saturation voltage of 1.5V and a gate-emitter leakage current of 200nA. It operates within a temperature range of -40°C to +175°C and incorporates built-in fast recovery freewheeling diode characteristics.
Feature Summary
- Field Stop Trench technology for low saturation voltage and soft switching
- Integrated fast recovery freewheeling diode (FRD)
- High-speed switching capability suitable for high-frequency applications
Applications
- Power Factor Correction (PFC) circuits
- Solar inverters and converters
- Uninterruptible Power Supplies (UPS)
- Industrial welding equipment
- Induction Heating (IH) systems
Procurement Notes
Verify the specific suffix GC13 against official datasheets to confirm packaging and tape-and-reel specifications. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer. Ensure the component meets all environmental and safety standards required for the target application before procurement.
Selection Notes
Select this component for applications requiring high-speed switching and low conduction losses in the 650V class. Compare the 75A current rating and 1.5V Vce(sat) against system thermal requirements. Consider the TO-247N-3 package for adequate heat dissipation in through-hole designs. Evaluate the integrated FRD performance if synchronous rectification is not used.
Part Context
This part belongs to the RGW series of high-speed IGBTs from ROHM Semiconductor. The series is characterized by trench gate field stop technology, offering improved switching efficiency compared to standard planar devices. It is positioned as a key component for modern energy-efficient power electronics, balancing speed and conduction loss.
Replacement Considerations
Check for direct pin-compatible alternatives within the same ROHM RGW family, such as RGWX5TS65GC11, ensuring voltage and current ratings match. Verify that any substitute maintains the same TO-247N-3 package and thermal characteristics. Cross-reference switching speeds and diode recovery times to ensure circuit stability.
