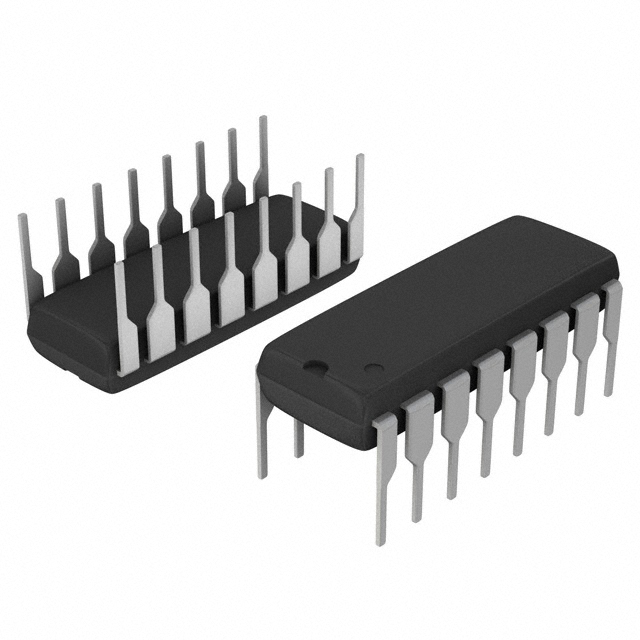

SD5000N PDIP 16L ROHS

$5.64

Description：MOSFET 4N-CH 20V 0.05A 16DIP
Series：-

SKU:4e01dd15d9b7 Category: FET, MOSFET Arrays Brand: Linear Integrated Systems, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET 4N-CH 20V 0.05A 16DIP
Series：-
Mfr：Linear Integrated Systems, Inc.
Package：Tube
Technology：MOSFET (Metal Oxide)
Configuration：4 N-Channel
FET Feature：-
Drain to Source Voltage (Vdss)：20V
Current - Continuous Drain (Id) @ 25°C：50mA (Ta)
Rds On (Max) @ Id, Vgs：70Ohm @ 1mA, 5V
Vgs(th) (Max) @ Id：1.5V @ 1µA
Gate Charge (Qg) (Max) @ Vgs：-
Input Capacitance (Ciss) (Max) @ Vds：-
Power - Max：500mW (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Through Hole
Package / Case：16-DIP (0.300", 7.62mm)
Supplier Device Package：16-DIP
Grade：-
Qualification：-

Download product information

SD5000N PDIP 16L ROHS

Overview

The SD5000N is a quad N-channel lateral DMOS analog switch in a PDIP-16 package. It features four bidirectional switches with Zener input protection, rated for ±10-V analog signals. Key electrical parameters include a maximum drain-source breakdown voltage of 20 V, a maximum gate threshold voltage of 1.5 V, and a maximum on-resistance of 70 Ω at VGS = 5 V. The device exhibits ultra-low reverse transfer capacitance (Crss) of 0.5 pF and a typical turn-on time of 1 ns.

Feature Summary

Monolithic array of four individual double-diffused enhancement-mode MOSFETs built on a common substrate
Poly-silicon gates protected by integrated Zener diodes for manufacturing reliability
Lateral construction utilizing proprietary DMOS process to achieve low capacitance and ultra-fast switching speeds

Applications

Fast sample-and-holds
Pixel-rate switching
Video switching
Multiplexer
DAC deglitchers

Procurement Notes

Verify the specific ordering suffix against the manufacturer's standard part call-out list to confirm the PDIP-16 plastic package and RoHS compliance status. Ensure the component matches the Linear Integrated Systems datasheet specifications rather than generic equivalents from other manufacturers.

Selection Notes

Select this component for applications requiring high-speed switching with minimal insertion loss and crosstalk. The low guaranteed on-resistance at 5 V drive simplifies driver requirements, while the ±10-V signal rating accommodates higher voltage analog signals compared to lower-rated variants.

Part Context

This device belongs to the SD5000/5400 series of monolithic switches manufactured using a lateral DMOS process. The series includes variants like the SD5001N rated for ±5-V signals and the SD5400CY in an SOIC-14 package. These devices are designed to minimize insertion loss and crosstalk through low interelectrode capacitances.
