SD57120

Overview

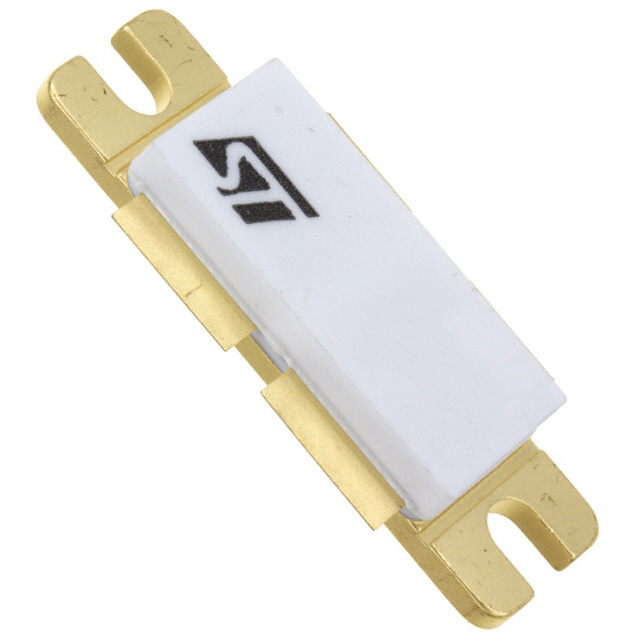

The SD57120 is an N-channel RF MOSFET transistor manufactured by STMicroelectronics. It utilizes silicon technology and operates at frequencies up to 1 GHz. The device features a drain-source breakdown voltage of 65 V and a continuous drain current of 14 A. Key performance metrics include a gain of 14 dB, an output power of 120 W, and a minimum forward transconductance of 3 S. The component supports a gate-source voltage of +20 V and has a power dissipation rating of 236 W. It is housed in an M252 surface-mount package and functions within a temperature range of -65 C to +150 C.

Feature Summary

• High-frequency operation capability up to 1 GHz for RF applications
• Robust thermal management with high power dissipation rating
• Surface-mount construction for automated assembly integration

Applications

• RF power amplification circuits
• High-frequency signal processing systems
• Industrial radio frequency equipment

Procurement Notes

Verify the end-of-life status before design finalization, as this component is marked as obsolete. Confirm availability through authorized distributors or secondary market channels. Ensure that any replacement strategy accounts for the discontinuation timeline. Validate that the M252 package footprint remains compatible with existing board layouts if retrofitting is considered.

Selection Notes

Select this component only when specific RF parameters such as 120 W output power and 14 dB gain are required. The 65 V breakdown voltage suits moderate voltage RF environments. Consider the M252 package constraints during PCB layout. Evaluate thermal requirements given the 236 W dissipation rating. Verify compatibility with 1 GHz operating frequencies for the target application.

Part Context

This part belongs to the STMicroelectronics RF MOSFET Transistors category under the MOSFets subcategory. It is designed for silicon-based radio frequency applications. The SD57120 series focuses on providing high power density and gain for RF systems. It represents a specialized discrete semiconductor solution for high-frequency power handling.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, direct replacements must be identified through manufacturer obsolescence notices or equivalent parameter matching from other vendors.
