SDM02M30DCP3-7

Diode Arrays Overview

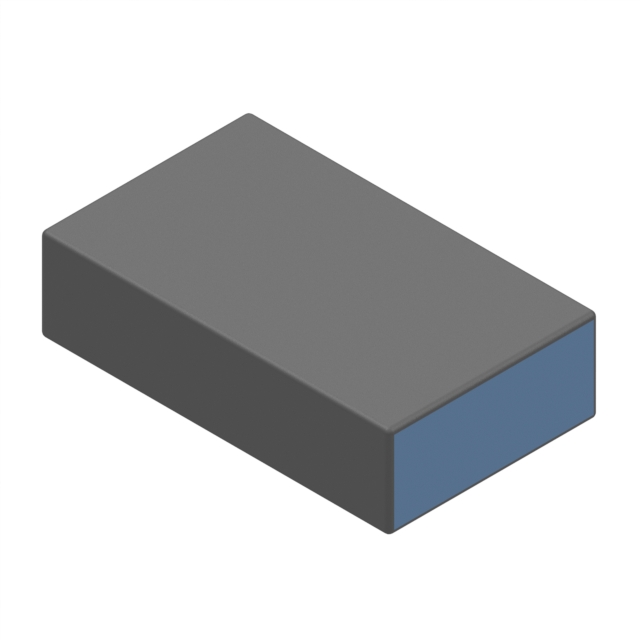

The SDM02M30DCP3-7 is a dual common cathode Schottky barrier diode from Diodes Incorporated, housed in an X3-DSN1006-3 package. It features a peak repetitive reverse voltage of 30V and a total average rectified output current of 400mA. The device exhibits low forward voltage (max 0.75V at +25°C) and minimal leakage current (max 2µA). Operating temperatures range from -55°C to +150°C junction temperature.

Diode Arrays Feature Summary

• Dual common cathode configuration within a compact die size package occupying only 0.6mm² board space with a very low profile.
• Optimized for low capacitance and low leakage current to maximize battery power in portable applications.
• Low thermal resistance enables designers to meet efficiency challenges while reducing board space requirements.

Diode Arrays Applications

• Blocking Diode
• Reverse Protection Diode
• Boost Diode

Diode Arrays Procurement Notes

Verify the specific ordering suffix '-7' corresponds to the tape and reel packaging quantity of 5,000 units as documented in the official datasheet. Confirm that the component status aligns with current availability, noting any discontinuation notices present in the documentation header. Ensure compliance with RoHS and halogen-free requirements specified by the manufacturer.

Diode Arrays Selection Notes

Select this component for designs requiring a small footprint and low forward voltage drop to minimize power dissipation losses. Consider its suitability for portable applications where maximizing battery life through low leakage current is critical. Evaluate the thermal characteristics against the specific PCB layout constraints to ensure adequate heat dissipation within the operating temperature range.

Diode Arrays Part Context

This part belongs to the SDM02M series of ultra-small surface mount Schottky diodes manufactured by Diodes Incorporated. The series is designed to set benchmarks in current density for industry-standard small packages. These devices are intended for use in applications demanding high efficiency and minimal board space utilization.

Diode Arrays Replacement Considerations

Consult the official datasheet for similar part numbers such as SDM02M30LP3 or SDM02U30LP3. Verify pinout compatibility and electrical specifications before substitution. Contact Diodes Incorporated representatives for automotive-specific qualified alternatives if required.

Diode Arrays FAQ

What is the maximum operating junction temperature for the SDM02M30DCP3?

The maximum operating junction temperature is +150°C.

Does the SDM02M30DCP3 support automotive applications?

For automotive applications requiring specific change control or AEC-Q qualification, customers must contact Diodes Incorporated directly.

What is the typical junction capacitance per diode?

The typical junction capacitance is 7pF when measured at VR = 1V and f = 1MHz.
