Product Detailed Parameters

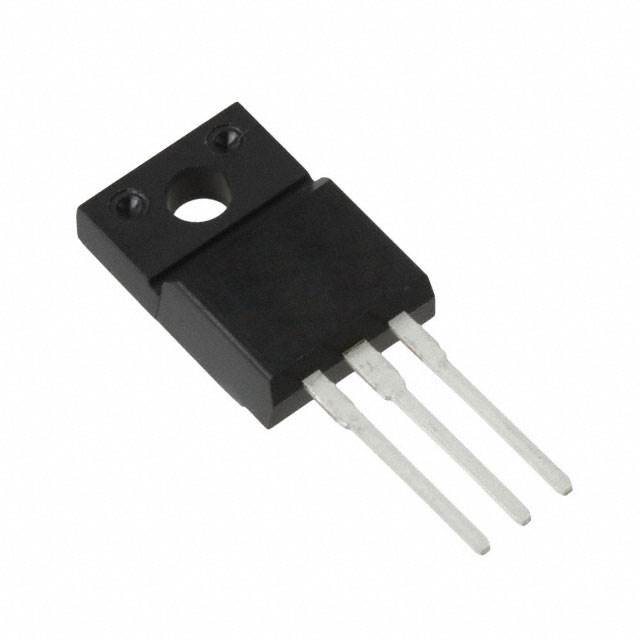

- Description：IGBT NPT 600V 9A TO220-3-31
- Series：-
- Mfr：Infineon Technologies
- Package：Tube,Tube
- IGBT Type：NPT
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：9:00 AM
- Current - Collector Pulsed (Icm)：24 A
- Vce(on) (Max) @ Vge, Ic：2.4V @ 15V, 6A
- Power - Max：32 W
- Switching Energy：215µJ
- Input Type：Standard
- Gate Charge：32 nC
- Td (on/off) @ 25°C：25ns/220ns
- Test Condition：400V, 6A, 50Ohm, 15V
- Reverse Recovery Time (trr)：200 ns
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：TO-220-3 Full Pack
- Supplier Device Package：PG-TO220-3-31
- Grade：-
- Qualification：-
Download product information
FAQ
Is the SKA06N60XKSA1 available in a through-hole package?
No, this component is not available in a through-hole package. It utilizes surface-mount technology.
What is the maximum collector-emitter voltage for this IGBT?
The maximum collector-emitter voltage (VCEO) is rated at 600 V.
Does this part belong to the Trenchstop series?
Yes, it belongs to the Trenchstop 5 family of IGBTs.
