SL 1 078 15 G

Headers, Male Pins Overview

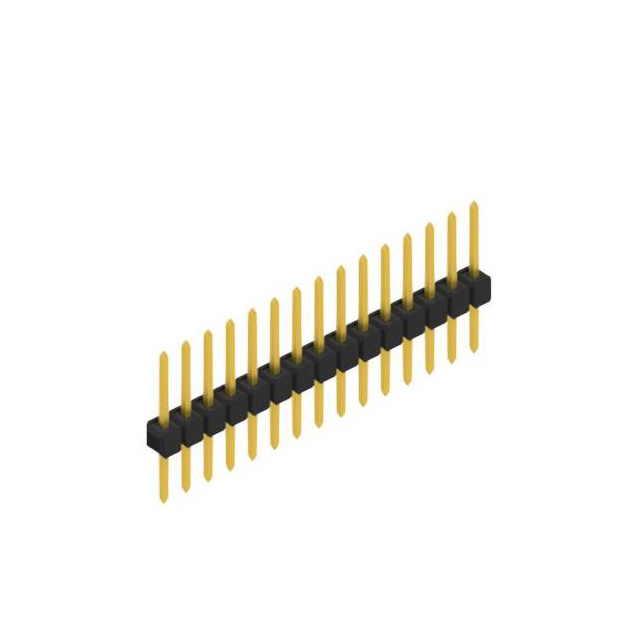

The SL 1 078 15 G is a male pin header connector from the Fischer Elektronik SL series. It features a single row of 15 contacts with a 2.54 mm pitch. The connector utilizes through-hole termination for PCB mounting. Contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. The housing is designed for secure mating with corresponding female connectors.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration
• Gold-plated contact surfaces for durability
• Through-hole PCB mounting style

Headers, Male Pins Applications

• General electronic circuit interconnections
• Prototype board development
• Industrial control module interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' denotes gold plating as per official datasheets. Confirm the exact contact count matches the model number '15'. Ensure the through-hole footprint aligns with your PCB design requirements before ordering.

Headers, Male Pins Selection Notes

Select this component when a single-row, gold-plated header is required for low-current signal applications. Compare against tin-plated variants if cost is a primary constraint, noting that gold offers superior oxidation resistance. Verify mechanical height constraints relative to adjacent components on the assembly.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL series of PCB connectors. The series offers various row counts, pole numbers, and plating options. The SL 1 078 15 G represents a specific configuration within this broader family, distinguished by its 15-pole count and gold finish.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitutes within the SL 1 078 series with different pole counts or plating types. Generic equivalents may match the 2.54 mm pitch but often differ in material specifications and mechanical retention properties.
