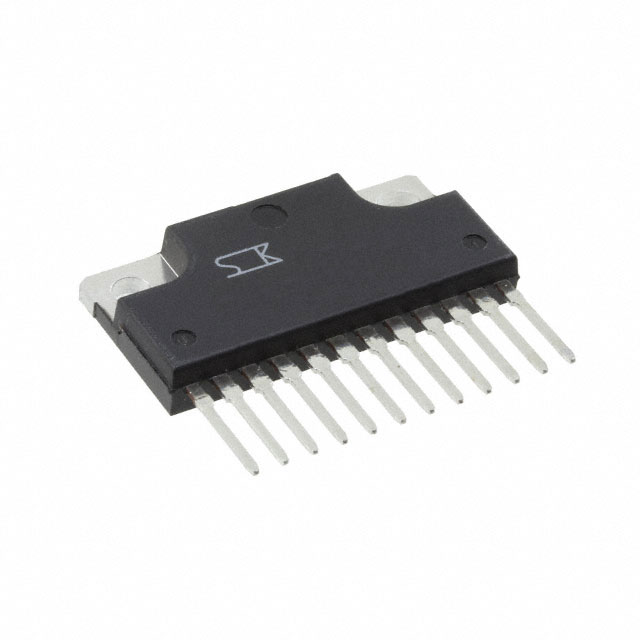

SLA5059

Overview

The SLA5059 is a monolithic integrated circuit containing three N-channel and three P-channel power MOSFETs designed for 3-phase motor drive applications. It features an absolute maximum drain-source voltage of ±60V and continuous drain current of ±4A at 25°C case temperature. The device operates with a junction temperature range up to 150°C and includes internal body diodes with reverse recovery times of 75ns. Thermal resistance from junction to case is specified at 4.17°C/W, supporting operation in environments ranging from -40°C to +150°C storage temperature.

Feature Summary

• Monolithic integration of six power MOSFETs (three N-channel and three P-channel) within a single package
• High thermal efficiency with low junction-to-case thermal resistance for effective heat dissipation
• Fast switching characteristics with defined turn-on/turn-off delays and reverse recovery times
• Robust safe operating area (SOA) performance across multiple pulse durations

Applications

• 3-phase brushless DC (BLDC) motor drives
• Small to medium capacity AC servo systems
• Industrial automation equipment requiring compact motor control solutions

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct packaging and tape-and-reel specifications. Confirm that the component meets RoHS compliance requirements if applicable to your manufacturing process. Check for any recent product change notices or obsolescence announcements directly from Sanken Electric before finalizing procurement plans.

Selection Notes

Select this component when designing 3-phase motor drivers requiring a combined N-channel and P-channel solution in a compact form factor. Ensure the application voltage does not exceed the 60V rating and that the thermal design accommodates the specified junction temperature limits. Consider the ±4A continuous current capability relative to the expected load and ambient conditions.

Part Context

The SLA5059 belongs to Sanken Electric's portfolio of power management ICs specifically tailored for motor control. It integrates discrete power MOSFETs into a single module to reduce board space and simplify driver circuit design. This integration helps minimize parasitic inductances and improves switching performance compared to discrete implementations.

Replacement Considerations

Consult Sanken Electric's official cross-reference documentation for verified equivalent part numbers. Do not substitute with generic MOSFET arrays unless electrical parameters such as V(BR)DSS, RDS(ON), and package pinout are identical.
