Product Detailed Parameters
- Description：IGBT 600V 30A PFC
- Series：-
- Mfr：Sanken Electric USA Inc.
- Package：Tube
- IGBT Type：-
- Voltage - Collector Emitter Breakdown (Max)：600 V
- Current - Collector (Ic) (Max)：30 A
- Current - Collector Pulsed (Icm)：-
- Vce(on) (Max) @ Vge, Ic：-
- Power - Max：-
- Switching Energy：-
- Input Type：Standard
- Gate Charge：-
- Td (on/off) @ 25°C：-
- Test Condition：-
- Reverse Recovery Time (trr)：-
- Operating Temperature：150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：12-SIP, 7 Leads
- Supplier Device Package：7-SIP
- Grade：-
- Qualification：-
Download product information
Overview

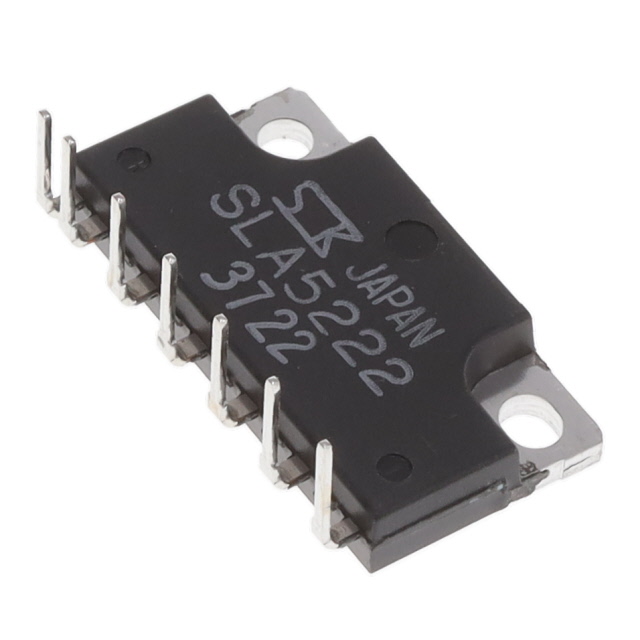

The SLA5222 is a smart power module from Sanken Electric designed for partial switching Power Factor Correction (PFC) circuits. It integrates an IGBT and a diode bridge rectifier within a single SLA package to reduce board space. The device features low saturation voltage and forward voltage characteristics. Key electrical parameters include a collector-emitter breakdown voltage of 600 V, a continuous collector current of 30 A at TC = 100 °C, and a typical saturation voltage of 1.3 V. The integrated diode supports a peak reverse voltage of 600 V and a forward current of 25 A.
Feature Summary
- Integrates IGBT and diode bridge rectifier for partial switching PFC applications
- Utilizes clip lead technology for inner connections to minimize inductance and resistance
- Features low saturation voltage IGBT and low forward voltage diode
- Enhanced safety profile with reduced risk of smoke generation or explosion upon destruction
Applications
- Partial switching PFC circuits
- Air conditioners
- Other Switching Mode Power Supplies (SMPS)
Procurement Notes
Verify the specific datasheet revision and manufacturing date code upon ordering. Confirm thermal management requirements align with the specified junction-to-case thermal resistance values. Ensure handling procedures adhere to electrostatic discharge precautions and mounting torque specifications to maintain device integrity and reliability during installation.
Selection Notes
Select this component for designs requiring space-constrained partial switching PFC solutions. Evaluate thermal performance based on the 1.36 °C/W junction-to-case thermal resistance under all-element operation. Consider the 600 V voltage rating and 30 A current capacity relative to the maximum operating temperature of 150 °C for appropriate derating strategies.
Part Context
The SLA5222 belongs to Sanken's SLA series of smart power modules. These devices are engineered to consolidate multiple power components into a single package, facilitating compact circuit layouts. The SLA packaging utilizes a specific lead frame structure optimized for high-power dissipation and robust mechanical stability in industrial and consumer electronic applications.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Designers should consult Sanken Electric directly for potential equivalent products or updated series replacements that meet identical electrical and mechanical specifications.
