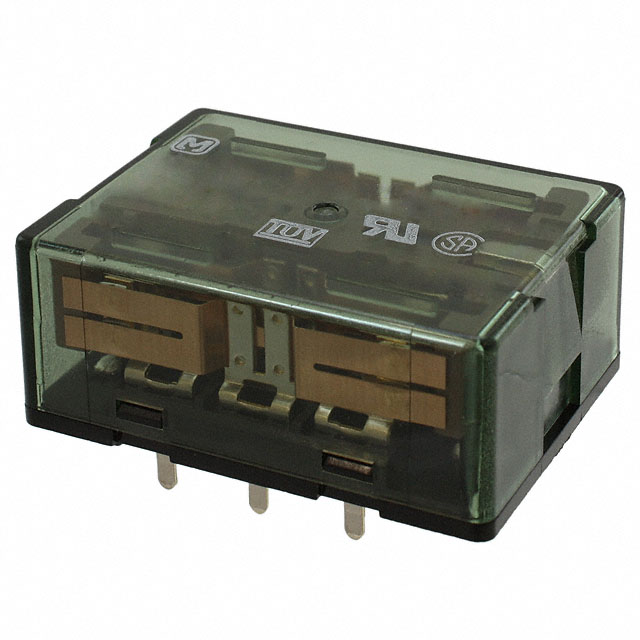

SP4-PL2-DC6V

SP4-PL2-DC6V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE 4PDT 10A 6V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for SP4-PL2-DC6V

• Description：RELAY GEN PURPOSE 4PDT 10A 6V
• Series：SP
• Mfr：Panasonic Electric Works
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：6VDC
• Contact Form：4PDT (4 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：250VAC, 30VDC - Max
• Load - Max Switching：2500VA, 300W
• Coil Current：50 mA
• Coil Type：Latching, Dual Coil
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：4.2 VDC
• Must Release Voltage：-
• Operating Temperature：-50°C ~ 60°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：CSA, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：30 ms
• Release Time：30 ms

Power Relays, Over 2 Amps datasheet and documents for SP4-PL2-DC6V
