SQJB46EP-T1_GE3

Overview

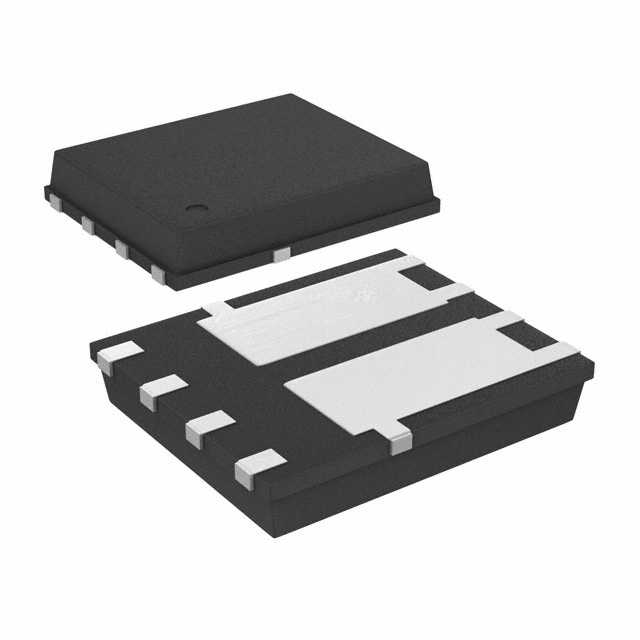

The SQJB46EP-T1-GE3 is an automotive-grade dual N-channel enhancement mode MOSFET utilizing TrenchFET Gen IV technology. It features a 40 V drain-source voltage rating and supports a continuous drain current of 30 A at 25 °C case temperature. The device exhibits a typical on-state resistance of 8 mΩ at VGS = 10 V, with a maximum gate-source voltage of ±20 V. Operating within a junction temperature range of -55 °C to +175 °C, it provides a maximum power dissipation of 34 W at 25 °C. The component is housed in a lead-free PowerPAK SO-8L package and meets AEC-Q101 qualification standards.

Feature Summary

• Dual N-channel configuration integrated into a compact surface-mount package for space-constrained designs.
• TrenchFET Gen IV architecture engineered to minimize conduction losses and improve switching efficiency.
• AEC-Q101 qualified for robust performance in demanding automotive electronic environments.

Applications

• Automotive high-side or low-side load switch applications
• DC motor control circuits requiring bidirectional current handling
• Power distribution units in vehicle electrical systems

Procurement Notes

Verify the specific ordering suffix against official Vishay documentation to confirm package type and compliance status. Confirm that the requested part number matches the exact electrical specifications required for the target circuit design. Ensure compatibility with the intended manufacturing process and thermal management strategy before finalizing procurement orders.

Selection Notes

Evaluate the thermal resistance characteristics relative to the expected PCB copper area and ambient conditions. Verify that the gate drive voltage aligns with the specified threshold and on-resistance parameters. Consider the pulsed drain current capability when designing for transient load scenarios or startup inrush currents.

Part Context

This component belongs to the Vishay Siliconix SQJB series of automotive MOSFETs. It is designed specifically for high-current switching applications where low on-resistance and high reliability are critical. The dual configuration allows for efficient implementation of half-bridge or synchronous rectification topologies.

Replacement Considerations

Direct substitutes include other Vishay dual N-channel MOSFETs with similar voltage and current ratings, such as the SQJB42EP-T1_GE3. Cross-referencing pinouts and thermal characteristics is essential when considering alternative manufacturers' components.
