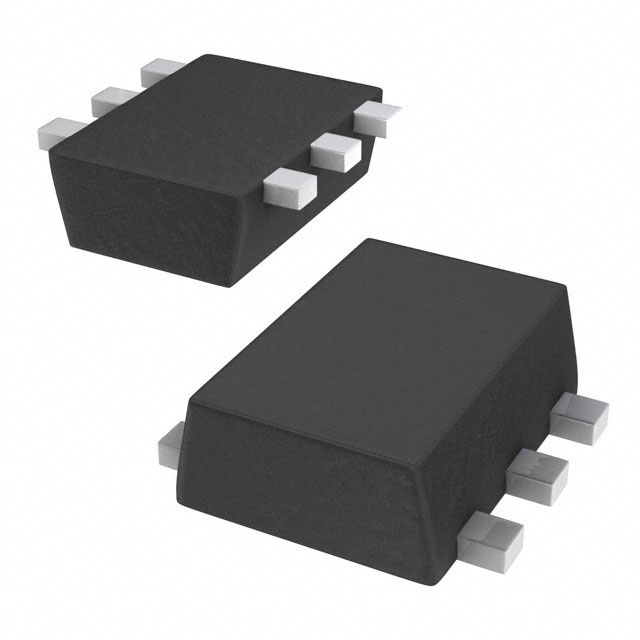

SSM6J409TU(TE85L,F

$0.65

Description：MOSFET P-CH 20V 9.5A UF6
Series：U-MOSV
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ee666f2bd880 Category: Single FETs, MOSFETs Brand: Toshiba Semiconductor and Storage

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SSM6J409TU(TE85L,F is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Toshiba Semiconductor and Storage. Its product description is MOSFET P-CH 20V 9.5A UF6. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for SSM6J409TU(TE85L,F

Description：MOSFET P-CH 20V 9.5A UF6
Series：U-MOSV
Mfr：Toshiba Semiconductor and Storage
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：P-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：20 V
Current - Continuous Drain (Id) @ 25°C：9.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：1.5V, 4.5V
Rds On (Max) @ Id, Vgs：22.1mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id：1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs：15 nC @ 4.5 V
Vgs (Max)：±8V
Input Capacitance (Ciss) (Max) @ Vds：1100 pF @ 10 V
FET Feature：-
Power Dissipation (Max)：1W (Ta)
Operating Temperature：150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：UF6
Package / Case：6-SMD, Flat Leads

Single FETs, MOSFETs datasheet and documents for SSM6J409TU(TE85L,F

SSM6J409TU(TE85L,F

Single FETs, MOSFETs Overview

The SSM6J409TU(TE85L,F) is a P-channel MOSFET from Toshiba's SSM Series, housed in a UF6 surface-mount package. It features a drain-source breakdown voltage of 20 V and a continuous drain current rating of 4.5 A at ambient temperature. The device exhibits a maximum on-resistance of 22.1 mΩ when driven by a gate-source voltage of 4.5 V. It incorporates U-MOS technology for enhanced performance.

Single FETs, MOSFETs Feature Summary

Incorporates U-MOS trench structure to achieve low on-resistance and high channel density.
Designed for low-voltage drive applications with optimized switching characteristics.
Configured as a single P-channel device within a compact UF6 surface-mount package.

Single FETs, MOSFETs Applications

Cell phone power supply circuits
Notebook PC power supply circuits
Small-signal switching applications

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix TE85L,F against the manufacturer's datasheet to confirm reel specifications and lead-free compliance. Ensure the UF6 package dimensions match the target PCB footprint requirements before finalizing procurement.

Single FETs, MOSFETs Selection Notes

Select this component for designs requiring a 20 V P-channel switch with a 4.5 A current capacity. The low on-resistance supports efficient power management in portable electronics. Confirm that the 4.5 V gate drive level aligns with the system logic levels.

Single FETs, MOSFETs Part Context

This part belongs to the SSM Series of small-signal MOSFETs produced by Toshiba Semiconductor and Storage. The series utilizes U-MOS technology and is intended for use in various electronic devices including portable consumer electronics and power management circuits.
