STL58N3LLH5 is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists STMicroelectronics. Its product description is MOSFET N-CH 30V 64A POWERFLAT. Review the specifications below when checking this part for your BOM.
Single FETs, MOSFETs specifications for STL58N3LLH5
- Description：MOSFET N-CH 30V 64A POWERFLAT
- Series：STripFET™ H5
- Mfr：STMicroelectronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- FET Type：N-Channel
- Technology：MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)：30 V
- Current - Continuous Drain (Id) @ 25°C：64A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
- Rds On (Max) @ Id, Vgs：9mOhm @ 7.5A, 10V
- Vgs(th) (Max) @ Id：2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs：10 nC @ 4.5 V
- Vgs (Max)：+22V, -20V
- Input Capacitance (Ciss) (Max) @ Vds：950 pF @ 25 V
- FET Feature：-
- Power Dissipation (Max)：4.8W (Ta), 62.5W (Tc)
- Operating Temperature：-55°C ~ 175°C (TJ)
- Grade：Automotive
- Qualification：AEC-Q101
- Mounting Type：Surface Mount

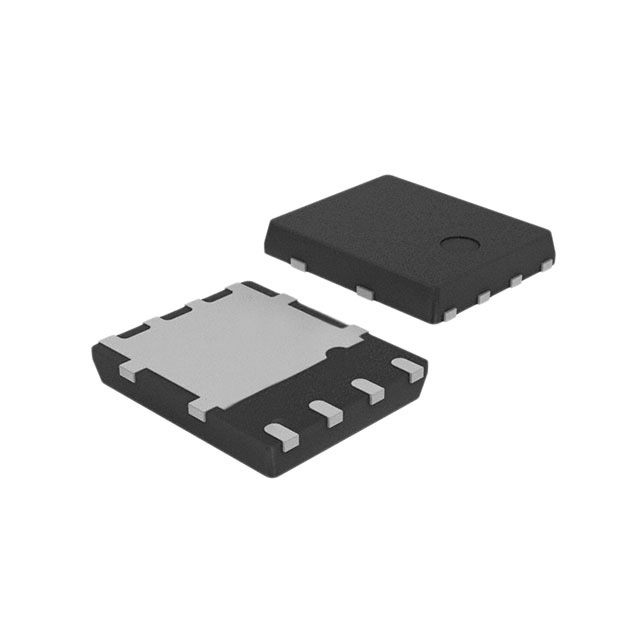

- Supplier Device Package：PowerFlat™ (5x6)
- Package / Case：8-PowerVDFN
Single FETs, MOSFETs datasheet and documents for STL58N3LLH5
Single FETs, MOSFETs Overview
The STL58N3LLH5 is an N-channel Power MOSFET utilizing STripFET H5 technology. It features a 30 V drain-source voltage and a typical on-resistance of 0.0076 Ohm. The device supports a continuous drain current of 56 A and handles up to 64 A at case temperature. It operates within a junction temperature range of -55 °C to +175 °C, with power dissipation rated at 62.5 W (case) and 4.8 W (ambient). The gate charge is 6.5 nC.
Single FETs, MOSFETs Feature Summary
- Designed for automotive applications and qualified to AEC-Q101 standards
- Features wettable flank package for enhanced solder joint reliability
- Optimized for very low on-state resistance and high avalanche ruggedness
- Delivers low gate drive power losses
Single FETs, MOSFETs Applications
- Automotive power management systems
- High-efficiency DC-DC converters
- Motor control circuits
Single FETs, MOSFETs Procurement Notes
Verify the specific suffix and tape/reel configuration against the manufacturer's official ordering guide. Confirm that the component meets AEC-Q101 requirements if used in automotive contexts. Ensure the wettable flank package specification aligns with your automated assembly capabilities. Cross-reference the exact part number with the latest datasheet to confirm active status and availability.
Single FETs, MOSFETs Selection Notes
Select this component when low conduction losses and high thermal performance are critical. The STripFET H5 technology offers superior Figure of Merit compared to previous generations. Consider the 8-pin PowerFLAT package for compact surface-mount designs requiring robust thermal handling and reliable soldering in demanding environments.
Single FETs, MOSFETs Part Context
This device belongs to the STL series of N-channel Power MOSFETs from STMicroelectronics. It utilizes STripFET H5 technology to achieve industry-leading performance metrics. The series is characterized by optimized on-resistance and switching characteristics, targeting high-efficiency power conversion applications.
Single FETs, MOSFETs Replacement Considerations
Check for direct substitutes within the same STL family, such as STL56N3LLH5 or STL10N3LLH5, ensuring pin compatibility and electrical parameter alignment. Verify package dimensions and thermal characteristics before substitution.
