TFM-110-02-L-D-WT-P-TR

Headers, Male Pins Overview

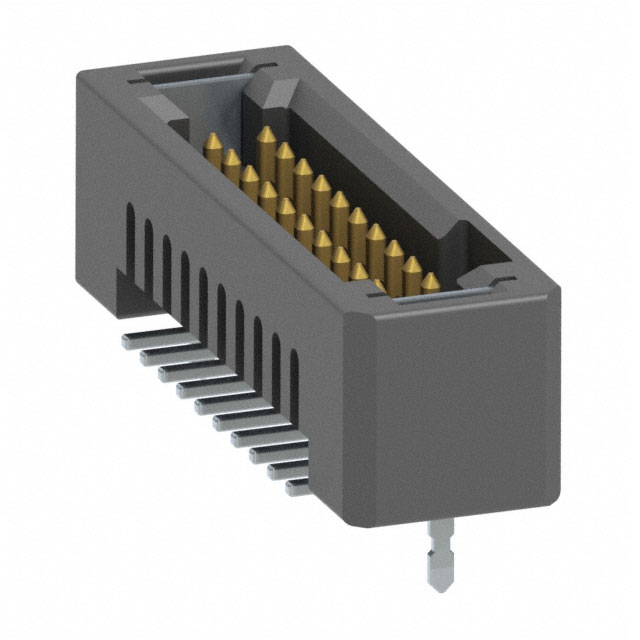

The TFM-110-02-L-D-WT-P-TR is a surface mount board-to-board connector from Samtec's Tiger Eye™ TFM series. It features 20 contacts arranged in two rows with a 0.050 inch (1.27 mm) pitch. The header utilizes male square pin sockets with gold plating over nickel for mating surfaces and matte tin termination. Constructed with phosphor bronze contacts and black liquid crystal polymer insulation, it supports a current rating of 3.2 A per pin when two pins are powered and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• High-reliability locking terminal strip design ensures secure mechanical retention during operation.
• Surface mount construction facilitates automated pick-and-place assembly processes.
• Gold-plated mating contacts provide durable low-contact resistance performance.
• Shrouded four-wall housing protects terminals and guides precise alignment.

Headers, Male Pins Applications

• High-density interconnects in compact electronic modules
• Board-to-board connections in telecommunications equipment
• Signal routing in industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Samtec datasheet to confirm exact contact plating, termination style, and packaging configuration. Ensure the selected variant matches the required PCB footprint and mating partner specifications. Confirm compliance with RoHS directives and material safety data sheets prior to integration into final assemblies.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust surface mount headers with high reliability locking features. Consider the 0.050 inch pitch and dual-row configuration for space-constrained designs. Evaluate the thermal operating range and current ratings against system requirements. Ensure compatibility with mating socket connectors from the SFM or TFSL series for optimal interface performance.

Headers, Male Pins Part Context

This part belongs to the Tiger Eye™ TFM family, characterized by high-reliability locking terminals and shrouded housings. The series offers various configurations including through-hole and surface mount options with different contact counts and plating choices. The TFM-110-02-L-D-WT-P-TR represents a specific surface mount variant optimized for automated assembly and secure board-to-board connections.

Headers, Male Pins Replacement Considerations

Compatible substitutes include TFML-110-02-L-D-WT-P-TR for shrouded surface mount variants and TFM-110-02-S-D-WT-P-TR for gold-plated alternatives. Verify dimensional compatibility and electrical ratings before substitution. Consult Samtec documentation for cross-reference details and mating partner specifications.
