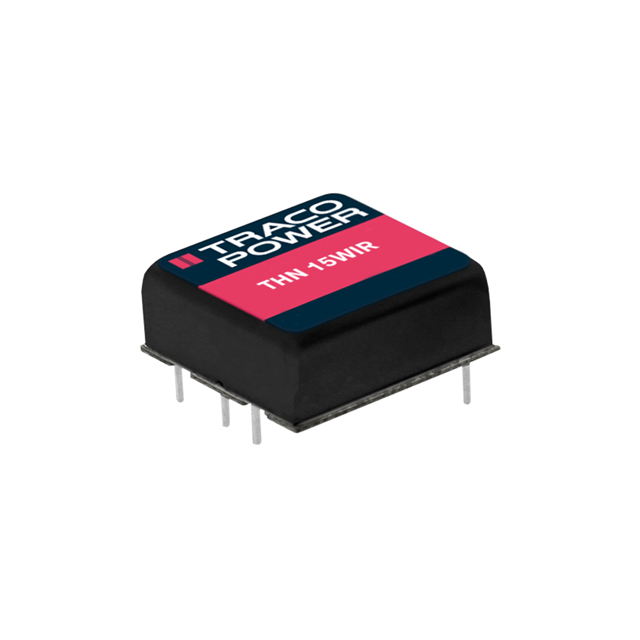

THN 15-7225WIR

THN 15-7225WIR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is DC DC CONVERTER +/-24V 15W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for THN 15-7225WIR

• Description：DC DC CONVERTER +/-24V 15W
• Series：THN 15WIR (15W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：160V
• Voltage - Output 1：24V
• Voltage - Output 2：-24V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：315mA, 315mA
• Power (Watts)：15 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Remote On/Off, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 90°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-
