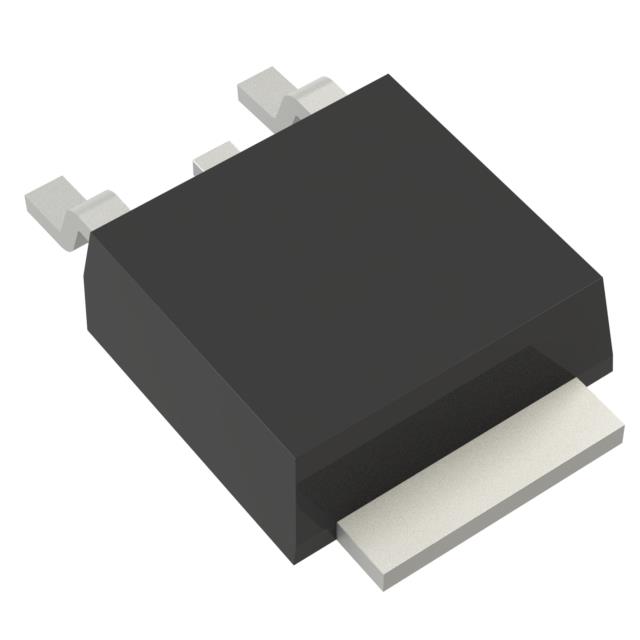

TLV1117CKVURG3

$0.64

Description：IC REG LIN POS ADJ 800MA TO252-3
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:79aa2b982fde Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TLV1117CKVURG3 is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is IC REG LIN POS ADJ 800MA TO252-3. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for TLV1117CKVURG3

Description：IC REG LIN POS ADJ 800MA TO252-3
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Output Configuration：Positive
Output Type：Adjustable
Number of Regulators：1
Voltage - Input (Max)：15V
Voltage - Output (Min/Fixed)：1.25V
Voltage - Output (Max)：13.7V
Voltage Dropout (Max)：1.3V @ 800mA
Current - Output：800mA
Current - Quiescent (Iq)：10 mA
Current - Supply (Max)：-
PSRR：75dB (120Hz)
Control Features：-
Protection Features：Over Current, Over Temperature
Operating Temperature：0°C ~ 125°C
Mounting Type：Surface Mount
Package / Case：TO-252-3, DPAK (2 Leads + Tab), SC-63
Supplier Device Package：TO-252-3
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for TLV1117CKVURG3

TLV1117CKVURG3

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The TLV1117CKVURG3 is a Texas Instruments adjustable linear voltage regulator in a TO-252 (KVU) package. It supports an input voltage range of 2.7V to 15V and delivers up to 800mA output current. The device provides an adjustable output voltage from 1.25V to 13.8V with ±1.0% accuracy at 25°C. Quiescent current is typically 5mA. It features thermal shutdown, foldback current limiting, and undervoltage lockout.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Adjustable output voltage configuration using external resistors
Integrated thermal shutdown protection circuit
Foldback current limit for overload protection
Undervoltage lockout for controlled startup

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Appliances
Home theater and entertainment systems
Motor drives
HVAC and building security systems
Smart meters

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm the exact package type, temperature grade, and tape-and-reel specifications. Ensure that the component matches the required lead-free and RoHS compliance standards for your manufacturing process. Cross-reference the datasheet revision date to ensure all electrical characteristics align with your design requirements.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when an adjustable output voltage between 1.25V and 13.8V is required with high current capability. The TO-252 package offers a balance of thermal performance and surface-mount convenience. Consider the 5mA quiescent current if power efficiency at light loads is a critical design constraint compared to lower-power alternatives.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the TLV1117 family of low-dropout linear regulators manufactured by Texas Instruments. The KVU suffix indicates the TO-252 surface-mount package. The 'C' designation specifies the commercial temperature range operation. This series is designed for general-purpose power management applications requiring stable regulation under varying load conditions.
