TMC1320-LA

Description：MOSFET N/P-CH 30V 7.3A 8PQFN
Series：-

SKU:edeaa94ddae5 Category: FET, MOSFET Arrays Brand: Analog Devices Inc./Maxim Integrated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOSFET N/P-CH 30V 7.3A 8PQFN
Series：-
Mfr：Analog Devices Inc./Maxim Integrated
Package：Tape & Reel (TR)
Technology：MOSFET (Metal Oxide)
Configuration：N and P-Channel, Common Drain
FET Feature：-
Drain to Source Voltage (Vdss)：30V
Current - Continuous Drain (Id) @ 25°C：7.3A, 5.3A
Rds On (Max) @ Id, Vgs：30mOhm @ 4A, 10V
Vgs(th) (Max) @ Id：3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：7.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds：400pF @ 25V
Power - Max：2.5W
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount

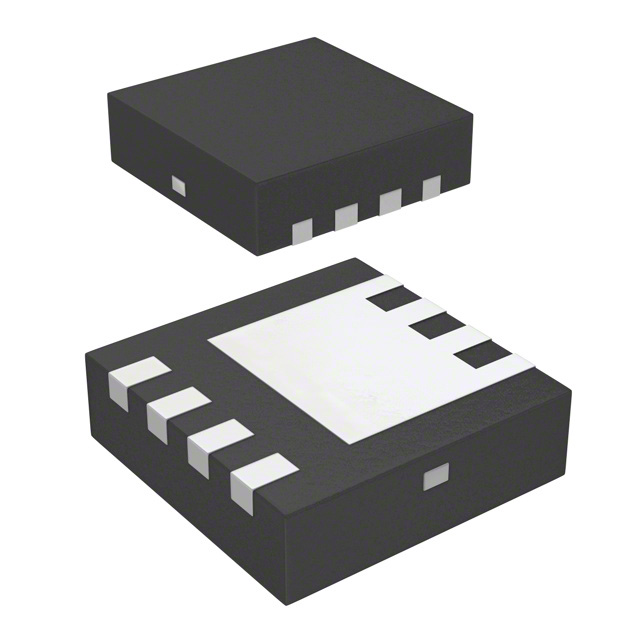

Package / Case：8-PowerTDFN
Supplier Device Package：8-PQFN (3x3)
Grade：-
Qualification：-

Download product information

TMC1320-LA

Replacement Considerations

The TMC1320-LA is not a standard Maxim Integrated product identifier. The TMC2130-LA-T serves as the primary functional equivalent within the SilentStepStick family, offering comparable StealthChop and StallGuard capabilities in a similar QFN package for bipolar stepper motor control applications.
