TN6726A

$0.12

Description：TRANS PNP 30V 1.5A TO-226-3
Series：-

SKU:fca1937b5e39 Category: Single Bipolar Transistors Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

TN6726A is listed in the Single Bipolar Transistors range at ChipApex. The manufacturer field lists onsemi. Its product description is TRANS PNP 30V 1.5A TO-226-3. Review the specifications below when checking this part for your BOM.

Single Bipolar Transistors specifications for TN6726A

Description：TRANS PNP 30V 1.5A TO-226-3
Series：-
Mfr：onsemi
Package：Bulk
Transistor Type：PNP
Current - Collector (Ic) (Max)：1.5 A
Voltage - Collector Emitter Breakdown (Max)：30 V
Vce Saturation (Max) @ Ib, Ic：500mV @ 100mA, 1A
Current - Collector Cutoff (Max)：100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce：50 @ 1A, 1V
Power - Max：1 W
Frequency - Transition：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Through Hole

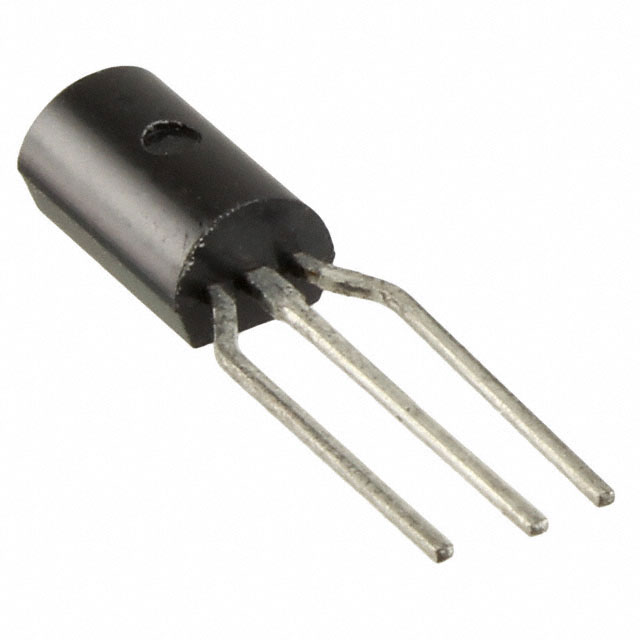

Package / Case：TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package：TO-226-3
Grade：-
Qualification：-

Single Bipolar Transistors datasheet and documents for TN6726A

TN6726A

Single Bipolar Transistors Overview

The onsemi TN6726A is a PNP general-purpose amplifier transistor designed for medium power applications requiring collector currents up to 1.0 A. It features a maximum continuous collector current of 1.5 A and a collector-emitter voltage rating of 30 V. The device operates within a junction temperature range of -55 °C to +150 °C, with total device dissipation rated at 1.0 W. It utilizes the SOT-223 surface-mount package.

Single Bipolar Transistors Feature Summary

Designed for general purpose medium power amplifiers and switches
Supports collector currents up to 1.0 A

Single Bipolar Transistors Applications

General purpose medium power amplifiers
Switching circuits requiring high collector current

Single Bipolar Transistors Procurement Notes

Verify the manufacturer origin carefully, as the datasheet indicates Fairchild Semiconductor as the original source while the brand is listed as onsemi. Confirm the specific package variant (SOT-223) matches the design requirements. Ensure the component status aligns with production needs, noting that older datasheets may reflect discontinued or legacy status from the original manufacturer.

Single Bipolar Transistors Selection Notes

Select this component for designs needing a PNP transistor capable of handling 1.0 A continuous load in a compact surface-mount form factor. Consider the 30 V collector-emitter voltage limit and the 1.0 W power dissipation capability when designing thermal management solutions. Verify compatibility with the required operating temperature range of -55 °C to +150 °C.

Single Bipolar Transistors Part Context

The TN6726A belongs to the family of PNP general-purpose amplifiers sourced from Process 77 technology. It is functionally equivalent to the NZT6726 variant. The device is packaged in an SOT-223 configuration, suitable for surface mount assembly. Original documentation credits Fairchild Semiconductor Corporation.
