TSM-111-01-T-SV

Headers, Male Pins Overview

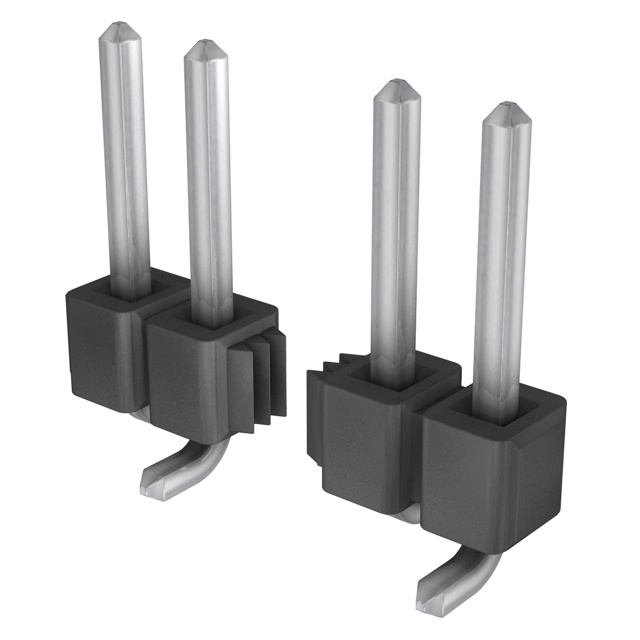

The TSM-111-01-T-SV is a surface mount header connector from the Samtec TSM series. It features 11 positions in a single row with a 2.54mm (0.100 inch) pitch. The connector utilizes square post terminals with tin plating on both mating and column surfaces. Constructed with phosphor bronze contacts and black liquid crystal polymer insulation, it supports a rated current of 3.2A per contact. The unit operates within a temperature range of -55°C to 105°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Surface mount termination technology for automated PCB assembly
• Square post terminal design ensuring reliable mating engagement
• High-temperature resistant liquid crystal polymer insulation material

Headers, Male Pins Applications

• Board-to-board interconnects requiring surface mount headers
• Cable-to-board connections using compatible mating sockets
• High-density electronic assemblies utilizing 2.54mm pitch spacing

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and mounting style before ordering. Confirm that the surface mount footprint aligns with the manufacturing process capabilities. Ensure compatibility with mating socket specifications regarding contact length and insulation height. Check for any special handling requirements associated with the tube packaging format.

Headers, Male Pins Selection Notes

Select this component when a single-row surface mount header with 2.54mm pitch is required. The TSM series offers flexibility through cuttable lengths and various row options. Consider the square post design for robust mechanical retention during mating cycles. Evaluate thermal performance requirements against the specified operating temperature range.

Headers, Male Pins Part Context

This component belongs to the TSM series of flexible stacking solutions by Samtec. The series provides versatile board-to-board and cable-to-board interconnect options. It is designed for applications demanding high reliability and precise alignment in compact electronic designs.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional and electrical compatibility if considering alternative manufacturers.
