TSW-106-22-T-T-RA

Headers, Male Pins Overview

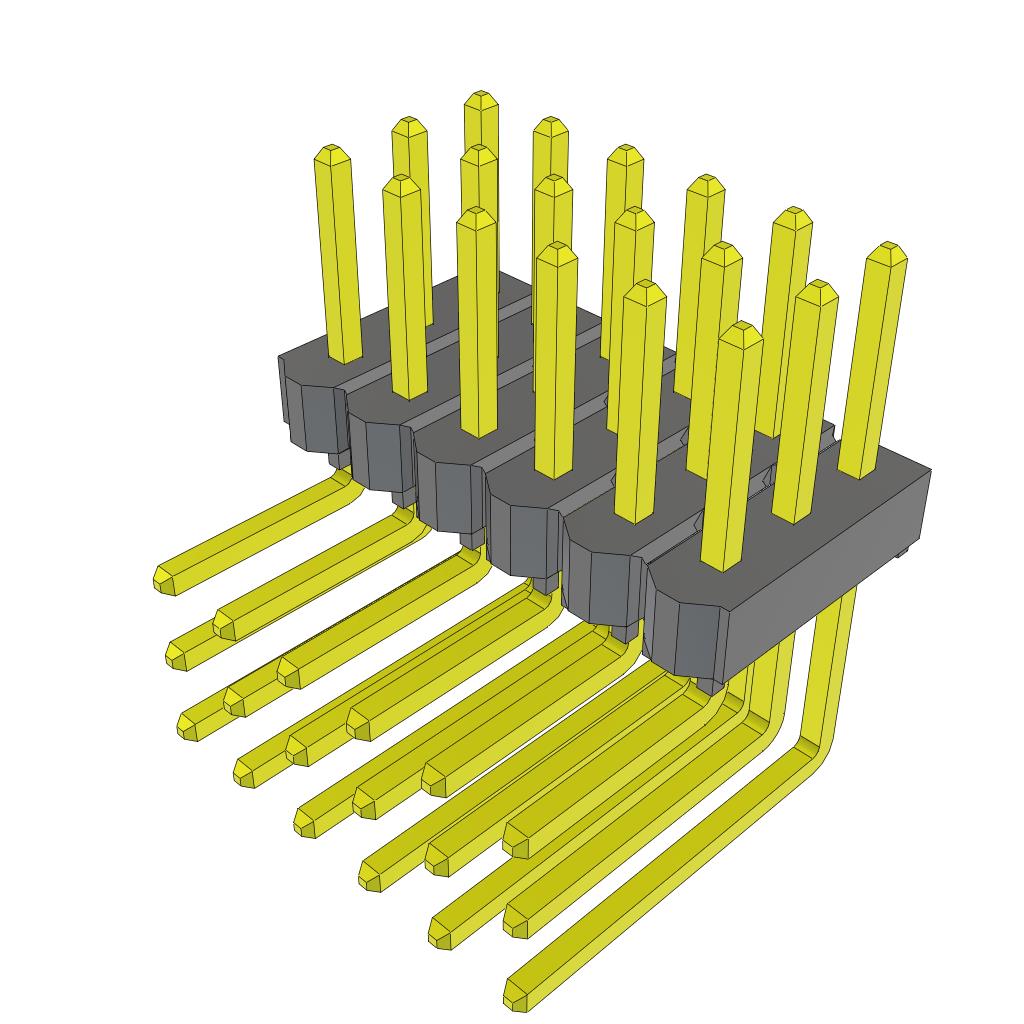

The TSW-106-22-T-T-RA is a right-angle male header manufactured by Samtec Inc. It features an 18-position configuration with a 2.54 mm (0.1 inch) pitch. The connector utilizes phosphor bronze contacts and through-hole termination. It supports a voltage range of 400VAC to 550VAC and a current rating of 6.3A. The maximum operating temperature is 105°C. Physical dimensions include a length of 15.24 mm, depth of 15.3 mm, and height of 8.12 mm.

Headers, Male Pins Feature Summary

• Right-angle orientation for space-efficient PCB mounting
• High voltage and current capacity suitable for robust connections
• Phosphor bronze contact material for reliable conductivity

Headers, Male Pins Applications

• General board-to-board interconnects
• Industrial control systems requiring high voltage isolation
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to ensure correct pin count, row configuration, and termination style match the design requirements. Confirm RoHS compliance status and lead time availability directly with the manufacturer or authorized distributors before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when right-angle male headers are required for 18-channel connections. Ensure the PCB footprint accommodates the 2.54 mm pitch and that the mechanical clearance allows for the specified height and depth dimensions during assembly.

Headers, Male Pins Part Context

This part belongs to the TSW series of through-hole square-post headers from Samtec. These headers are designed for standard electronic applications, offering a balance of electrical performance and mechanical stability for general-purpose circuit board interconnections.

Headers, Male Pins Replacement Considerations

Cross-reference with other Samtec TSW variants having identical 18-position counts and right-angle configurations. Verify that substitute parts maintain the same 2.54 mm pitch and current/voltage ratings to ensure functional compatibility.
