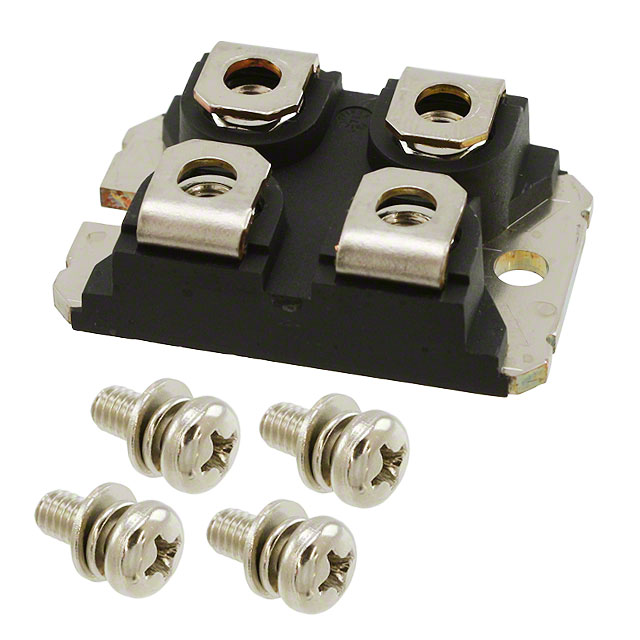

VS-GA250SA60S

Description：IGBT MOD 600V 400A 961W SOT227
Series：-

SKU:16d3b5b77cd3 Category: IGBT Modules Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MOD 600V 400A 961W SOT227
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Tube
IGBT Type：-
Configuration：Single
Vce(on) (Max) @ Vge, Ic：1.66V @ 15V, 200A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：SOT-227-4
Supplier Device Package：SOT-227
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：400 A
Power - Max：961 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：16.25 nF @ 30 V

Download product information

VS-GA250SA60S

Overview

The VS-GA250SA60S is a single Insulated Gate Bipolar Transistor (IGBT) module manufactured by Vishay General Semiconductor. It features an ultralow collector-emitter saturation voltage (VCE(on)) design, optimized for high-efficiency power conversion applications. The device is rated for a maximum collector-emitter voltage of 600 V and supports a continuous collector current of 250 A. Key electrical parameters include a maximum gate-emitter threshold voltage of 2 V and a maximum gate trigger current of 45 mA. The module utilizes a SOT-227 chassis mount package, facilitating robust thermal management in industrial environments.

Feature Summary

Ultralow VCE(on) architecture for enhanced energy efficiency
Single IGBT configuration with 600 V blocking capability
Chassis mount construction for high-power thermal dissipation

Applications

Industrial motor drives and inverters
Uninterruptible power supplies (UPS)
High-frequency welding equipment

Procurement Notes

Verify the specific revision status and lead times directly with authorized distributors, as component availability may fluctuate. Confirm that the SOT-227 mounting interface matches your mechanical design requirements. Ensure proper handling procedures are followed due to the sensitivity of semiconductor junctions during installation.

Selection Notes

Select this component when low conduction losses are critical for system efficiency. The 600 V rating suits medium-voltage AC/DC conversion systems. Evaluate thermal resistance characteristics against your heatsink capabilities to ensure safe operating temperatures under full load conditions.

Part Context

This part belongs to Vishay's VS-GA series of IGBT modules, which are engineered for high-current industrial applications. The series emphasizes reduced on-state voltage drops to minimize power dissipation. The VS-GA250SA60S represents a specific variant within this lineup, tailored for 250 A continuous current operations in compact chassis-mounted form factors.
