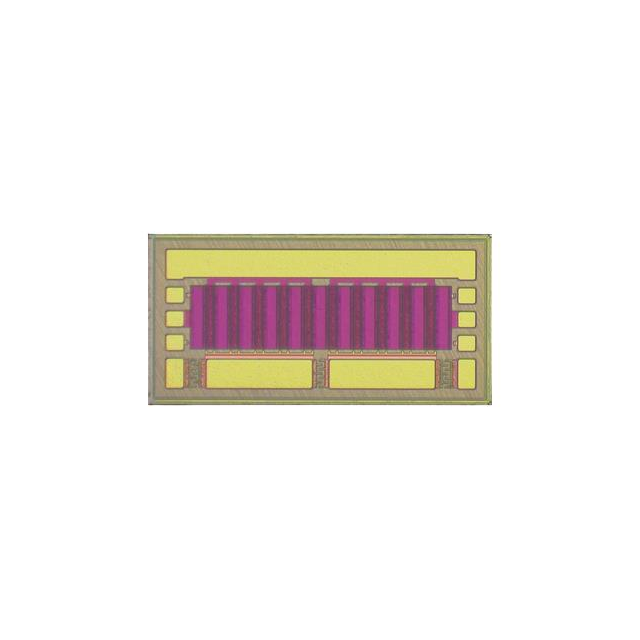

WP28007025

$71.64

Description：RF MOSFET GAN HEMT 28V DIE
Series：-

SKU:7b118f7549aa Category: RF FETs, MOSFETs Brand: WAVEPIA.,Co.Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF MOSFET GAN HEMT 28V DIE
Series：-
Mfr：WAVEPIA.,Co.Ltd
Package：Box
Technology：GaN HEMT
Frequency：7GHz
Gain：17dB
Voltage - Test：28 V
Current Rating (Amps)：800mA
Noise Figure：-
Current - Test：100 mA
Power - Output：25W
Voltage - Rated：28 V
Grade：-
Qualification：-
Mounting Type：-
Package / Case：Die
Supplier Device Package：Die
Configuration：-

Download product information

WP28007025

Overview

The WP28007025 is a Gallium Nitride High Electron Mobility Transistor (GaN HEMT) die manufactured by WAVEPIA Co., Ltd. It operates at a drain voltage of 28V with a breakdown voltage of 160V and supports frequencies up to 7 GHz. At 2.45 GHz, the device delivers a typical saturated output power (Psat) of 25W, small signal gain exceeding 17 dB, and drain efficiency greater than 70%. The die dimensions are 1750 x 885 microns with a thickness of 100 microns.

Feature Summary

High breakdown voltage capability for robust operation
Supports high-efficiency amplification in RF applications
Reliability monitoring support integrated into design

Applications

ISM-band Amplifiers
C-band Amplifiers
Broadband Amplifiers
Base Station Communication
Drone, UAV
Satellite Communications
Radar Application

Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm that the received bare die matches the specified package type and dimensions. Review the latest datasheet version for any updates to electrical characteristics or handling procedures before integration.

Selection Notes

Select this component for designs requiring high power density and wide bandwidth in the C-band and ISM bands. Ensure the thermal management system can handle the junction-to-case thermal resistance. Verify that the biasing circuitry supports the required 28V drain voltage and gate threshold specifications.

Part Context

This part belongs to the WAVEPIA GaN HEMT family, specifically designed for high-power RF applications. The naming convention indicates a 28V drain voltage, DC to 7GHz frequency range, and 25W output power capability. It serves as a bare die solution for custom amplifier modules.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate alternative GaN HEMT dies based on matching voltage ratings, power output, and frequency response requirements.
