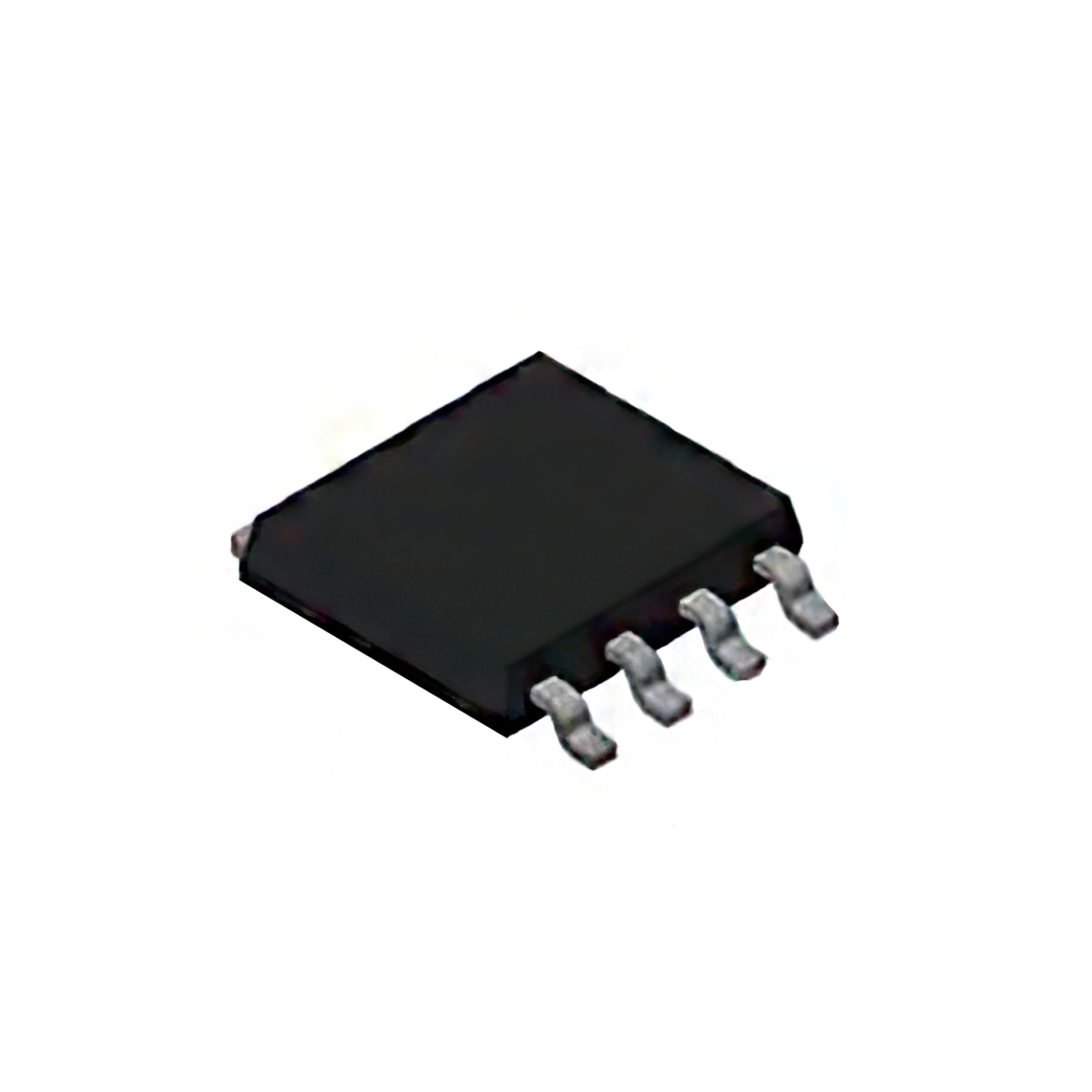

XP4NA2R2HCST

$0.34

Description：MOSFET N CH 40V 36.5A SPPAK5X6
Series：AP4NA2R2HC
Mfr：YAGEO XSEMI
Package：Tube

SKU:38079144150c Category: Single FETs, MOSFETs Brand: YAGEO XSEMI

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

XP4NA2R2HCST is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists YAGEO XSEMI. Its product description is MOSFET N CH 40V 36.5A SPPAK5X6. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for XP4NA2R2HCST

Description：MOSFET N CH 40V 36.5A SPPAK5X6
Series：AP4NA2R2HC
Mfr：YAGEO XSEMI
Package：Tube
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：40 V
Current - Continuous Drain (Id) @ 25°C：36.5A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：10V
Rds On (Max) @ Id, Vgs：2.28mOhm @ 40A, 10V
Vgs(th) (Max) @ Id：4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs：80 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：4000 pF @ 30 V
FET Feature：-
Power Dissipation (Max)：5W (Ta), 96.1W (Tc)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：SPPAK 5X6
Package / Case：SC-100, SOT-669

Single FETs, MOSFETs datasheet and documents for XP4NA2R2HCST

XP4NA2R2HCST

Single FETs, MOSFETs Overview

The XP4NA2R2HCST is a single N-channel enhancement mode MOSFET manufactured by YAGEO XSemi using silicon technology. It features a drain-source breakdown voltage of 40 V and supports a continuous drain current of 36.5 A. The device exhibits a low on-resistance of 2.28 mOhms, ensuring efficient power handling. It is housed in an SPPAK-5x6 surface-mount package designed for high thermal performance. The component operates within a temperature range of -55°C to +150°C and utilizes a standard 20 V gate-source voltage rating.

Single FETs, MOSFETs Feature Summary

Single N-channel configuration with enhancement mode operation
Low on-resistance for reduced conduction losses
High current capability suitable for power switching applications
Surface-mount packaging optimized for thermal dissipation

Single FETs, MOSFETs Applications

LED light bars
Data acquisition systems
Data logging equipment

Single FETs, MOSFETs Procurement Notes

Verify the exact manufacturer part number against official YAGEO XSemi documentation before procurement. Confirm that the SPPAK-5x6 package matches your PCB footprint requirements. Ensure the 40V rating aligns with your circuit's maximum voltage stress. Cross-reference electrical parameters such as Rds(on) and Id with the latest datasheet to guarantee compatibility with your specific design constraints.

Single FETs, MOSFETs Selection Notes

Select this component when a robust single N-channel switch is required for moderate voltage applications. The low on-resistance makes it suitable for efficiency-critical designs. Consider the SPPAK-5x6 package size for board space constraints. Verify that the 36.5 A current rating exceeds your peak load requirements. Ensure the operating temperature range covers your environmental conditions.

Single FETs, MOSFETs Part Context

This component belongs to the XP series of MOSFETs from YAGEO XSemi, focusing on silicon-based power switching solutions. The series offers various voltage and current ratings across different packages. This specific model targets applications requiring reliable performance in compact form factors. It complements other devices in the lineup for diverse power management needs.
