1-770858-0

Headers, Male Pins Overview

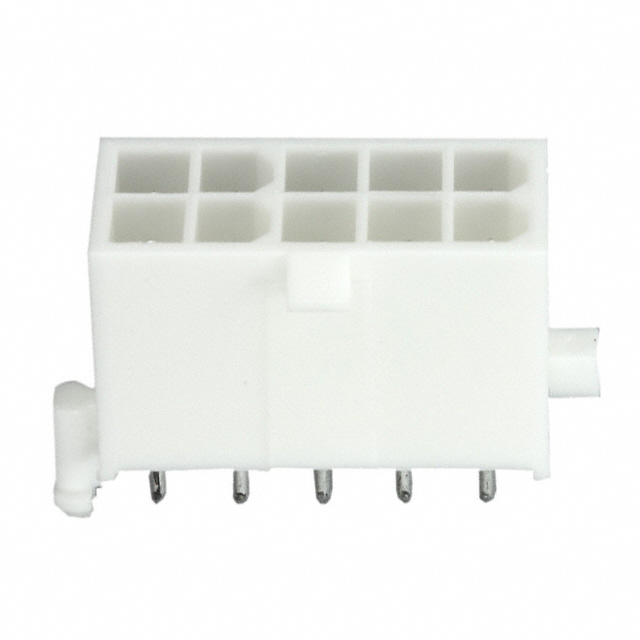

The TE Connectivity 1-770858-0 is a dual-row unshrouded male pin header designed for wire-to-board interconnections. It features ten positions with a pitch spacing of 4.14mm and utilizes through-hole termination. The contacts are finished with tin to ensure reliable conductivity. This component belongs to the MATE-N-LOK series, offering discrete wire interconnect capabilities suitable for various electronic assemblies requiring robust mechanical and electrical connections.

Headers, Male Pins Feature Summary

• Dual-row unshrouded male pin header configuration
• Tin-plated contacts for reliable conductivity
• Through-hole termination method
• Part of the MATE-N-LOK connector system

Headers, Male Pins Applications

• Wire-to-board interconnects
• Discrete wire assembly systems
• Electronic equipment internal connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact contact count, row configuration, and plating specifications. Ensure the selected variant matches the required pitch spacing and termination style for the target PCB layout. Cross-reference the part number with the latest datasheet to confirm compliance with current manufacturing standards and material compositions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a dual-row, unshrouded male header with a 4.14mm pitch is required for wire-to-board applications. Consider the through-hole mounting requirement and tin finish compatibility with the assembly process. Evaluate the ten-position capacity against circuit density needs. Ensure the mechanical dimensions align with the available board space and mating receptacle constraints within the design.

Headers, Male Pins Part Context

This part belongs to the MATE-N-LOK family, known for versatile discrete wire interconnect solutions. The series offers various configurations including wire-to-wire and wire-to-board options. The 1-770858-0 specifically addresses needs for higher-density connections compared to single-row headers while maintaining the robust locking mechanisms characteristic of the broader MATE-N-LOK product line.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Ensure any substitute maintains identical pitch, row count, contact quantity, and termination type. Verify mechanical footprint compatibility and electrical rating equivalence before implementation.
