1-770968-0

Headers, Male Pins Overview

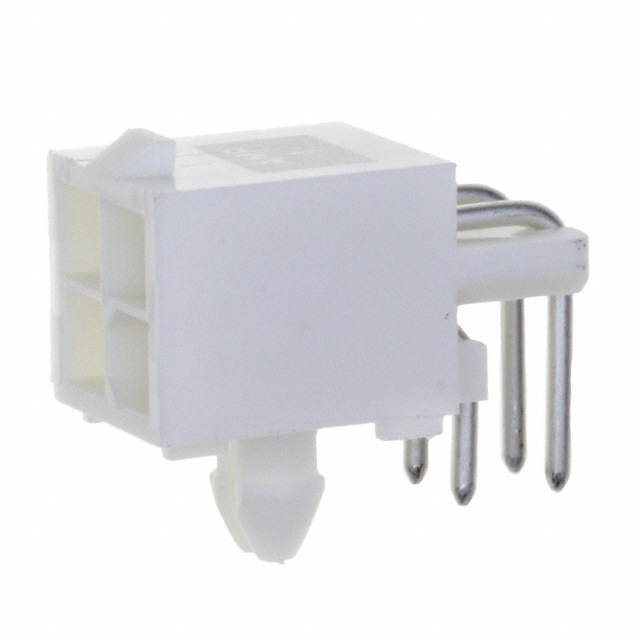

The 1-770968-0 is a Mini-Universal MATE-N-LOK series PCB header connector manufactured by TE Connectivity AMP Connectors. It features a right-angle, surface mount or through-hole design with two rows and four positions. The component utilizes a 4.14 mm pitch and accepts wire gauges ranging from 22 to 16 AWG. Rated for 600VAC and carrying UL certification, it employs gold-plated brass contacts and a white nylon housing.

Headers, Male Pins Feature Summary

• Right-angle configuration facilitates compact board layout integration
• Gold-plated contacts ensure reliable electrical conductivity
• Shrouded four-wall design protects mating connections

Headers, Male Pins Applications

• Industrial control systems
• Power supply units
• General electronic equipment

Headers, Male Pins Procurement Notes

Verify the specific termination style required for your assembly process. Confirm that the selected variant matches the intended mounting method on the printed circuit board. Ensure compatibility with mating cables regarding wire gauge specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle interconnection is necessary. Evaluate the current requirements against the rated capacity of the contact system. Consider the physical space constraints on the PCB to ensure proper clearance for the shrouded housing structure.

Headers, Male Pins Part Context

This part belongs to the Mini-Universal MATE-N-LOK family, designed for robust power and signal distribution. The series provides versatile connectivity options for various industrial applications requiring secure and durable electrical interfaces.

Headers, Male Pins Replacement Considerations

Compatible substitutes include the 1-770966-1 and 1-770968-1 models within the same product line.
