1-770974-1

Headers, Male Pins Overview

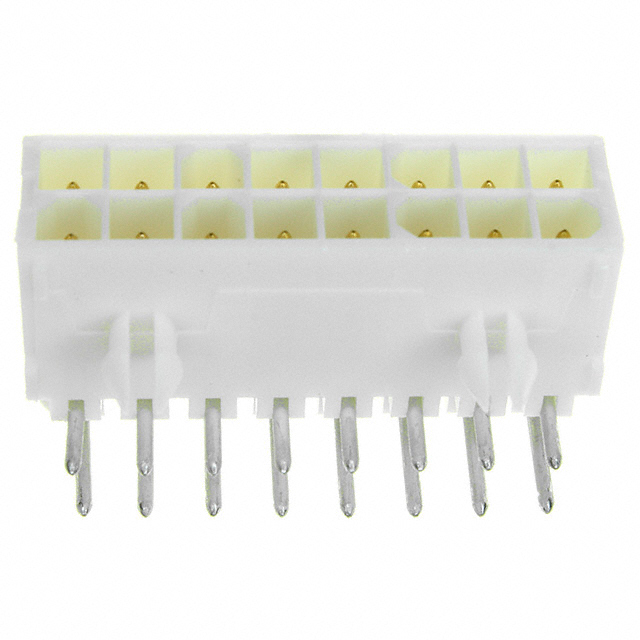

The 1-770974-1 is a right-angle pin header connector from the Mini-Universal MATE-N-LOK series, manufactured by TE Connectivity AMP Connectors. It features a dual-row configuration with 16 positions and a 4.14 mm (0.163 inch) mating pitch. Designed for wire-to-board applications, it utilizes through-hole termination and solder mounting. The contacts are gold-plated brass pins housed in white nylon insulation rated UL94 V-0. The connector supports a maximum voltage of 600VAC and operates within a temperature range of -20°C to 85°C.

Headers, Male Pins Feature Summary

• Dual-row right-angle design for compact board space utilization
• Gold-plated contacts ensure reliable signal transmission
• Nylon housing provides UL94 V-0 flame retardancy

Headers, Male Pins Applications

• General purpose electronic interconnects
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm the gold plating variant, as standard versions may differ. Check current lifecycle status, as availability varies. Ensure compatibility with mating sockets regarding pitch and row alignment before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle, dual-row header is required for high-current or general-purpose connections. Confirm that the 4.14 mm pitch matches the PCB layout. Verify that the 600VAC rating meets the system's electrical requirements and that the operating temperature range suits the environment.

Headers, Male Pins Part Context

This connector belongs to the Mini-Universal MATE-N-LOK family, known for robust mechanical locking and versatile application options. It serves as a critical interconnect solution in TE Connectivity's broader portfolio of rectangular connectors, offering reliability in demanding environments.

Headers, Male Pins Replacement Considerations

Consult TE Connectivity for direct equivalents. Generic substitutes must match the 4.14 mm pitch, 16-position count, dual-row structure, and right-angle orientation to ensure mechanical and electrical compatibility.
