1054291216

Headers, Male Pins Overview

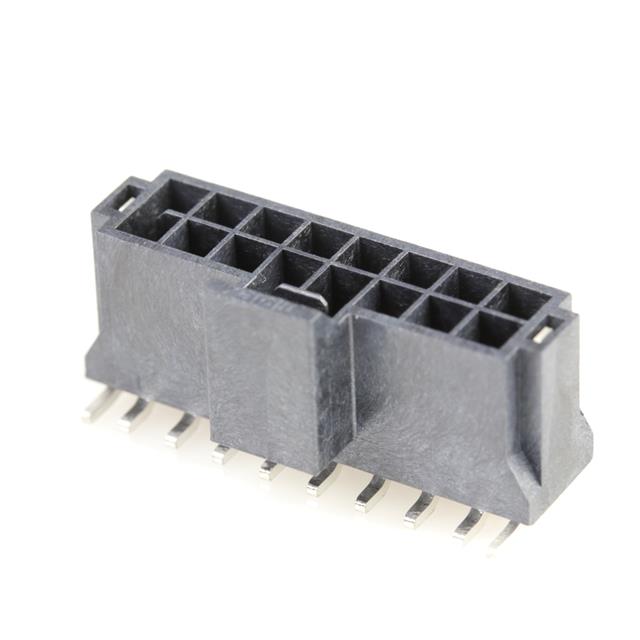

The Molex 105429-1216 is a Nano-Fit vertical header designed for surface mount technology. It features a 2.50mm pitch and supports 16 circuits in a dual-row configuration. The connector utilizes black resin with glow-wire capability and incorporates 0.38µm gold plating on the mating interface to ensure reliable electrical performance.

Headers, Male Pins Feature Summary

• Surface mount construction enables automated assembly processes
• Glow-wire capable resin supports high thermal stability requirements
• Dual row layout facilitates dense circuit integration

Headers, Male Pins Applications

• Consumer electronics assemblies
• Industrial control systems
• Automotive infotainment units

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 16-circuit, dual-row configuration. Confirm surface mount compatibility with the target PCB design. Ensure the gold plating specification meets the application's conductivity needs. Cross-reference the glow-wire rating against safety standards. Validate mechanical keying options if cross-mating prevention is required.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-density interconnect solution is necessary. The 2.50mm pitch offers a balance between spacing and density. Surface mount termination suits automated manufacturing lines. Consider the glow-wire capability for applications requiring enhanced fire safety compliance without additional housing complexity.

Headers, Male Pins Part Context

This component belongs to the Nano-Fit series, which provides compact interconnect solutions for space-constrained environments. The series emphasizes reliability through robust material selection and precise manufacturing tolerances, supporting diverse electronic applications across multiple industries.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
