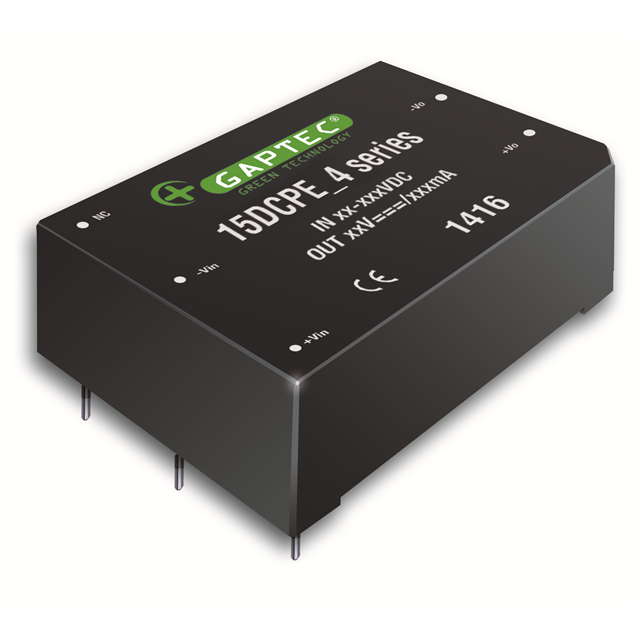

15DCPE_12S4

15DCPE_12S4 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is ISOLATED MODULE DC DC CONVERTERS. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 15DCPE_12S4

• Description：ISOLATED MODULE DC DC CONVERTERS
• Series：15DCPE_4 (15W)
• Mfr：GAPTEC Electronic
• Package：Retail Package
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：100V
• Voltage - Input (Max)：1000V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1.25A
• Power (Watts)：15 W
• Voltage - Isolation：4 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 70°C (With Derating)
• Efficiency：77%
• Mounting Type：Through Hole
• Package / Case：5-DIP Module
• Size / Dimension：2.76" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-
