1726470102

Headers, Male Pins Overview

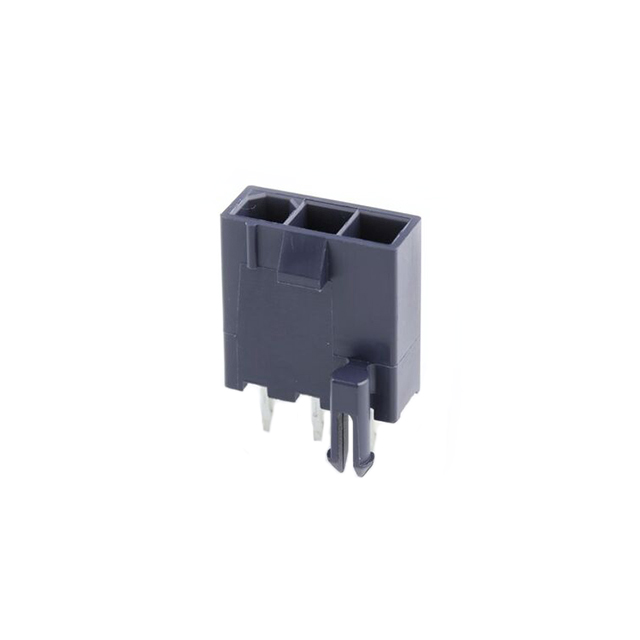

The Molex 1726470102 is a Mini-Fit Jr. vertical header assembly featuring a single row with two circuits. It utilizes a 4.20mm (0.165 inch) pitch and is constructed from black nylon insulation rated UL94 V-2. The terminals are plated with matte tin, offering a minimum thickness of 2.54μm. Designed for through-hole mounting, this component supports power applications up to 9.0A per circuit and operates within a temperature range of -40°C to 80°C. It meets glow wire compliance standards and includes board lock features for secure installation.

Headers, Male Pins Feature Summary

• Features fully isolated terminals and positive housing locks for reliable connections.
• Complies with glow wire testing standards for enhanced safety.
• Includes board lock mechanisms to ensure secure PCB attachment.

Headers, Male Pins Applications

• Power distribution in electronic assemblies
• Board-to-wire interconnections
• High-current signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Molex documentation to confirm terminal plating thickness and housing material specifications. Ensure compatibility with mating receptacles from the same Mini-Fit Jr. series. Confirm that the through-hole footprint matches the target PCB design requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row header with a 4.20mm pitch is required for power applications. Consider the 9.0A current rating and 600V voltage rating for suitability. Verify that the glow wire capability and UL94 V-2 flammability rating meet the project's safety and regulatory standards.

Headers, Male Pins Part Context

This part belongs to the Molex Mini-Fit Jr. series, designed for power applications. The series offers various configurations including line-to-line, line-to-board, and board-to-board options. The 1726470102 specifically represents a vertical header variant within this family, distinguished by its two-position layout and specific terminal plating.

Headers, Male Pins Replacement Considerations

Compatible mating housings include part numbers such as 2004531002 from the Mini-Fit Jr. line. Ensure any substitute maintains the 4.20mm pitch and vertical orientation. Verify that alternative headers share the same current rating and glow wire compliance if safety certifications are critical.
