20525-030E-02

Headers, Receptacles, Female Sockets Overview

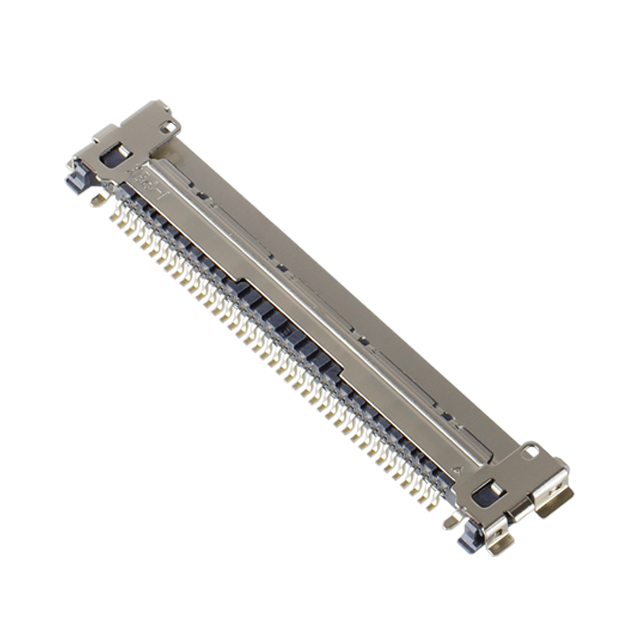

The I-PEX 20525-030E-02 is a CABLINE®-CA series receptacle connector featuring 30 positions with a 0.4mm pitch. Designed for surface mount, right-angle installation, it utilizes gold-plated contacts and supports micro-coaxial or discrete cables. The component operates within a temperature range of -40°C to 85°C and meets UL94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Supports high-speed signal transmission for eDP, MIPI, and USB interfaces
• Features a mechanical locking structure for secure connection stability
• Compatible with micro-coaxial cables or AWG 36–42 discrete wires

Headers, Receptacles, Female Sockets Applications

• Notebook and tablet display connections
• AR/VR headset internal flexible cable links
• Drone and robot camera module data transmission

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific datasheet version to confirm current RoHS compliance status and MSL classification. Ensure that the selected variant matches the required pin count and orientation for your PCB layout. Cross-reference official I-PEX documentation to validate material specifications against your environmental requirements.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when board space is limited due to its compact 0.4mm pitch design. It is suitable for applications requiring robust EMI shielding and reliable high-frequency performance. Consider the mechanical lock feature if vibration resistance is critical for the end product.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the CABLINE®-CA family, which focuses on thinning and high-speed capabilities. It addresses the industry demand for miniaturized connectors in portable electronics while maintaining signal integrity for next-generation display and sensor interfaces.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official I-PEX substitution guides for verified alternatives. Generic cross-references may not match the precise impedance matching or mechanical locking characteristics required for high-speed applications.
