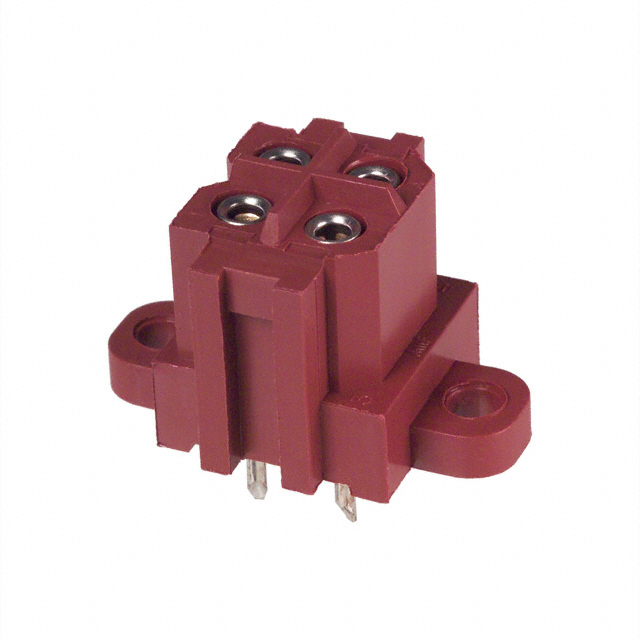

207496-1

207496-1 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HDR 4POS 0.197 TIN-LEAD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 207496-1

• Description：CONN HDR 4POS 0.197 TIN-LEAD PCB
• Series：Metrimate
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Cable/Wire
• Number of Positions：4
• Number of Positions Loaded：All
• Pitch - Mating：0.197" (5.00mm)
• Number of Rows：2
• Row Spacing - Mating：0.197" (5.00mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Finish - Mating：Tin-Lead
• Contact Finish Thickness - Mating：150.0µin (3.81µm)
• Insulation Color：Black, Red
• Insulation Height：0.565" (14.35mm)
• Contact Length - Post：0.181" (4.60mm)
• Operating Temperature：-55°C ~ 130°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin-Lead
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Mounting Flange
• Current Rating (Amps)：7.5A
• Voltage Rating：600V

Headers, Receptacles, Female Sockets datasheet and documents for 207496-1
