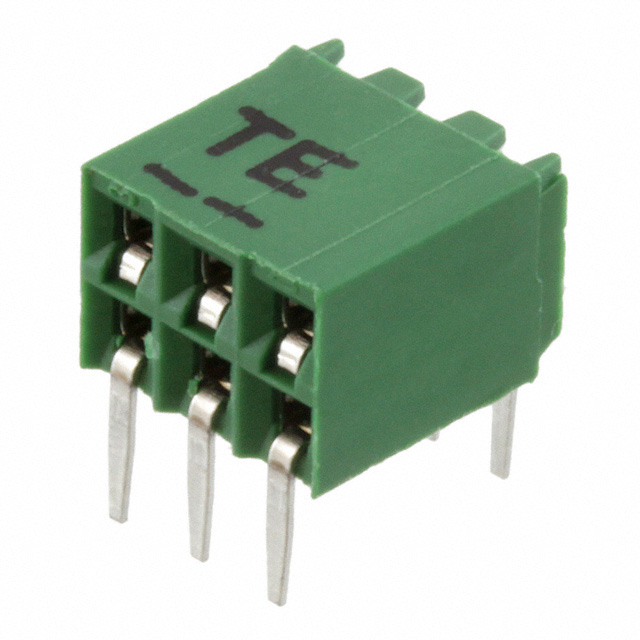

216604-3

216604-3 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN RCPT 6POS 0.1 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 216604-3

• Description：CONN RCPT 6POS 0.1 GOLD PCB R/A
• Series：AMPMODU HV 190
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk,Box
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：6
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：31.5µin (0.80µm)
• Insulation Color：Green
• Insulation Height：0.228" (5.80mm)
• Contact Length - Post：0.126" (3.20mm)
• Operating Temperature：-
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 216604-3
