2199119-3

$1.59

Description：CONN M.2 FMALE 67POS 0.020 GOLD
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7a8bd0f25309 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2199119-3 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN M.2 FMALE 67POS 0.020 GOLD. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2199119-3

Description：CONN M.2 FMALE 67POS 0.020 GOLD
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Card Type：M.2 (NGFF) Mini Card
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：67
Card Thickness：-
Number of Rows：2
Pitch：0.020" (0.50mm)
Read Out：Dual
Features：Board Guide
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：15.0µin (0.38µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 80°C

Edgeboard Connectors datasheet and documents for 2199119-3

2199119-3

Edgeboard Connectors Overview

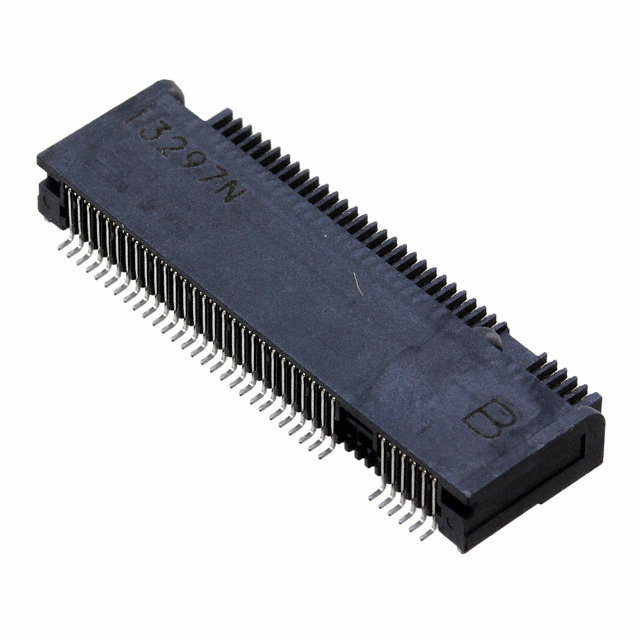

The TE Connectivity AMP Connectors part number 2199119-3 is a 67-position female card edge connector designed for M.2 (NGFF) Mini Card applications. It features a dual-row configuration with a 0.50mm (0.020 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a black thermoplastic insulator. It is intended for surface mount installation at a right angle to the printed circuit board, supporting single-sided module designs.

Edgeboard Connectors Feature Summary

Designed specifically for M.2 (NGFF) Mini Card form factors
Dual-row contact arrangement for high-density interconnects
Gold-plated contacts ensure reliable signal transmission
Right-angle surface mount termination for PCB integration

Edgeboard Connectors Applications

WiFi module integration
Bluetooth connectivity solutions
Global navigation satellite systems (GNSS)
Near field communication (NFC) devices

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact plating thickness and material specifications. Ensure compatibility with single-sided module height requirements as defined in the application specification. Confirm that the right-angle surface mount footprint matches the target PCB design constraints before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when designing for M.2 NGFF standard compliance requiring a 67-pin interface. The right-angle surface mount style is suitable for space-constrained layouts where vertical clearance is limited. Ensure the host system supports the electrical characteristics associated with the M.2 NGFF series and verify thermal management capabilities within the -40°C to 80°C operating range.

Edgeboard Connectors Part Context

This connector belongs to the M.2 NGFF series, which standardizes interfaces for small form-factor add-in cards. It replaces older Mini PCIe standards in modern portable electronics. The 67-position count aligns with common high-bandwidth requirements for wireless and storage modules, providing a robust mechanical and electrical link between the card and the mainboard.
