Headers, Receptacles, Female Sockets Overview

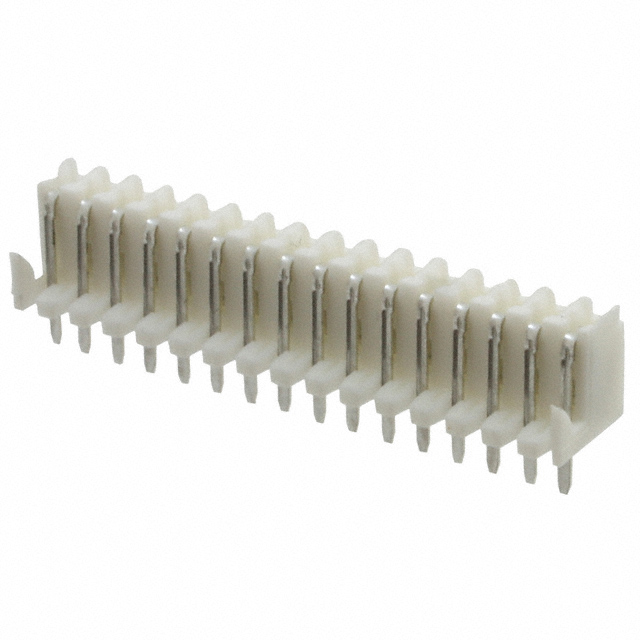

Molex part number 0022142164 is a 16-position receptacle connector from the KK254 series. It features a 0.100 inch (2.54mm) pitch and utilizes through-hole termination for PCB mounting. The contacts are female, cat-ear type with tin plating, rated for 2.5A current and 250VAC voltage. The housing is white polyamide (PA/nylon) with UL94 V-0 flammability rating. Insulation height is 0.311 inches (7.90mm), contact length is 0.132 inches (3.35mm), and contact plating thickness is 100.0µin (2.54µm). Operating temperature range is -40°C to 80°C.

Headers, Receptacles, Female Sockets Feature Summary

• Bottom entry receptacle design with push-pull locking mechanism
• Tin-plated brass contacts for reliable signal transmission
• Polyamide insulation material ensuring thermal stability

Headers, Receptacles, Female Sockets Applications

• Automotive electronic systems
• General industrial equipment
• Medical device interconnections
• Telecommunications infrastructure

Headers, Receptacles, Female Sockets Procurement Notes

Verify the complete Molex part number including all suffixes against official datasheets to ensure correct pin count, plating specification, and packaging configuration. Confirm that the specific revision matches the required application standards. Cross-reference ordering information directly with authorized Molex distributors or the manufacturer's official documentation to avoid discrepancies in component specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 16-position bottom-entry receptacle with 2.54mm pitch is required for through-hole PCB assembly. Ensure the mating header aligns with the KK254 series specifications. Verify that the 2.5A current rating and 250VAC voltage limits meet the circuit requirements. Consider the operating temperature range of -40°C to 80°C for environmental compatibility.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the Molex KK254 family of low-power and signal interconnect solutions. The series is designed for board-to-board or cable connections. It provides a compact form factor suitable for dense PCB layouts. The product remains active in the Molex portfolio, supporting various industrial and commercial applications requiring reliable signal integrity.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Molex documentation for verified substitute part numbers. No public confirmed substitutes are listed in the provided data.
