22182081

$1.24

Description：CONN RCPT 8POS 0.1 GOLD PCB
Series：KK254, 4455
Mfr：Molex
Package：Tray

SKU:2b1ff9632e28 Category: Headers, Receptacles, Female Sockets Brand: Molex

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

22182081 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 8POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 22182081

Description：CONN RCPT 8POS 0.1 GOLD PCB
Series：KK254, 4455
Mfr：Molex
Package：Tray
Connector Type：Receptacle
Contact Type：Female, Cat Ear
Style：Board to Board or Cable
Number of Positions：8
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：15.0µin (0.38µm)
Insulation Color：White
Insulation Height：0.311" (7.90mm)
Contact Length - Post：0.132" (3.35mm)
Operating Temperature：-40°C ~ 80°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：Board Hooks
Current Rating (Amps)：2.5A
Voltage Rating：250VAC

Headers, Receptacles, Female Sockets datasheet and documents for 22182081

22182081

Headers, Receptacles, Female Sockets Overview

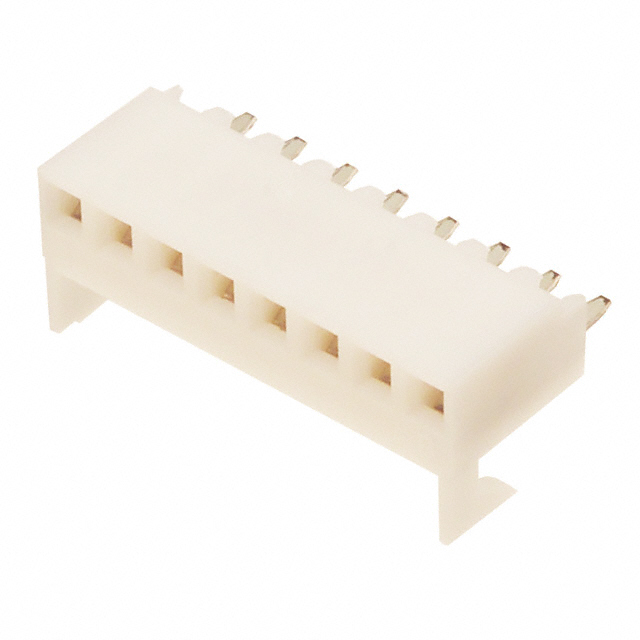

Molex 22182081 is a KK 254 PC Board Connector receptacle designed for through-hole mounting. It features an 8-position configuration with a 0.100 inch (2.54mm) pitch. The connector utilizes female sockets with gold plating and includes cat ear terminals for secure PCB retention. It supports top entry and end-to-end stacking, incorporating offset header entry holes for polarization.

Headers, Receptacles, Female Sockets Feature Summary

Features offset header entry holes providing polarization to prevent incorrect mating.
Designed for top entry and end-to-end stackable applications.
Incorporates cat ear terminal design for enhanced PCB retention.

Headers, Receptacles, Female Sockets Applications

General purpose board-to-board interconnections
Signal and power routing in electronic assemblies
Stacked circuit board configurations

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to ensure the correct contact plating thickness and housing color match the design requirements. Confirm that the selected tooling is compatible with the KK 254 series for proper termination. Check RoHS compliance status if required by the target market regulations.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring a low-profile, high-density connection with reliable mechanical retention. The 0.100 inch pitch allows for standard spacing on PCB layouts. Ensure the mating connector matches the male header specifications for the KK 254 system.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Molex KK 254 series of board connectors. The series is characterized by its compact size, reliability, and versatility for various electronic applications. It is widely used in consumer electronics, industrial controls, and telecommunications equipment.
