2362375-3

Edgeboard Connectors Overview

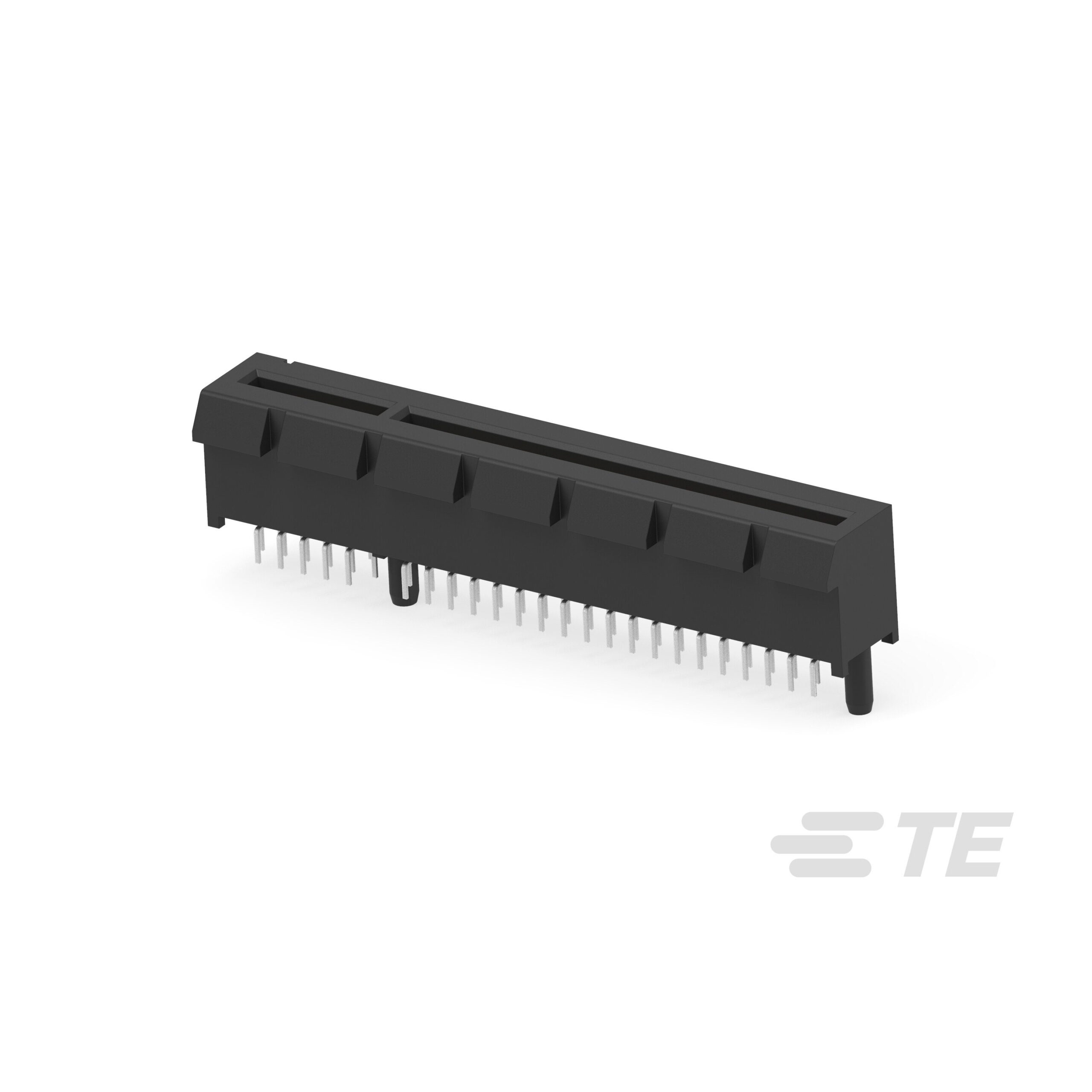

The 2362375-3 is a female card edge connector from the AMP brand, designed for PCI Express applications. It features 98 positions arranged in two rows with a 1.00mm pitch. The connector utilizes gold-plated contacts and a black insulator. It employs a DIP mounting style with a 3.1mm tail length for through-hole soldering. This component supports high-speed data transmission standards.

Edgeboard Connectors Feature Summary

• Supports PCI Express Gen 4 high-speed data transmission
• Dual-row configuration with 98 total positions
• Gold-plated contact surfaces for reliable conductivity
• DIP mounting style with extended tail for secure board attachment

Edgeboard Connectors Applications

• High-performance computing systems
• Server motherboards
• Graphics processing units
• Network interface cards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm exact tail length and plating thickness specifications. Ensure compatibility with the target PCB stack-up and mating card dimensions. Confirm that the supplier provides original manufacturer documentation to validate authenticity and current production status before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a 98-position female interface is required for PCI Express Gen 4 environments. The 1.00mm pitch and dual-row layout must align with the design rules of the host motherboard. Verify that the DIP termination method matches the assembly process capabilities and that the mechanical height constraints are satisfied by the 3.1mm tail dimension.

Edgeboard Connectors Part Context

This component belongs to the TE Connectivity AMP Connectors portfolio, specializing in robust interconnect solutions. The product line focuses on enabling reliable signal integrity in demanding electronic environments. As part of the AMP series, it leverages established engineering principles for high-density connectivity in modern digital infrastructure.

Edgeboard Connectors Replacement Considerations

Cross-reference with 2-2362375-1 for alternative positioning configurations within the same family. Evaluate 5-2362375-3 for variants with different tail lengths or plating options. Always verify pin count and electrical ratings against the original design requirements before substituting.
