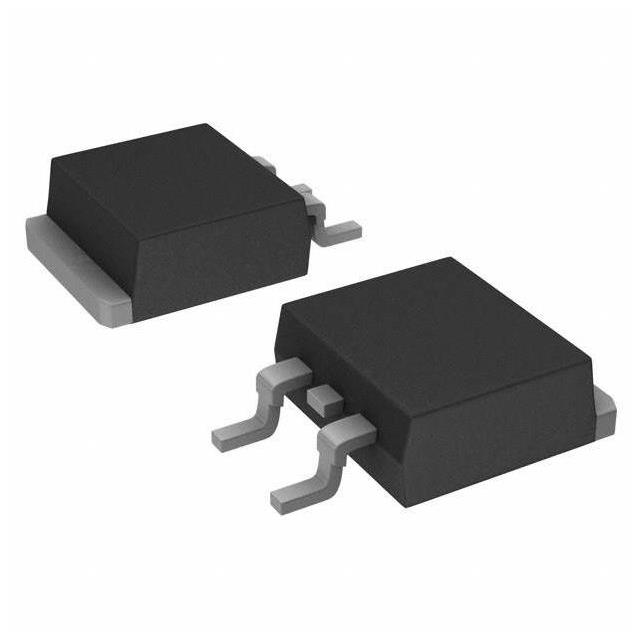

2SK3812-ZP-E1-AZ

Product Detailed Parameters

• Description：MP-25LZP
• Series：-
• Mfr：Renesas Electronics Corporation
• Package：Tape & Reel (TR),Cut Tape (CT)
• FET Type：N-Channel
• Technology：MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss)：60 V
• Current - Continuous Drain (Id) @ 25°C：110A (Tc)
• Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
• Rds On (Max) @ Id, Vgs：2.8mOhm @ 55A, 10V
• Vgs(th) (Max) @ Id：2.5V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs：250 nC @ 10 V
• Vgs (Max)：±20V
• Input Capacitance (Ciss) (Max) @ Vds：16800 pF @ 10 V
• FET Feature：-
• Power Dissipation (Max)：1.5W (Ta), 213W (Tc)
• Operating Temperature：150°C
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount
• Supplier Device Package：TO-263-3
• Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
