3-2362375-3

Description：PCIE GEN4, 98POS ,G/F ,DIP ,3.1M
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tray

SKU:971f6e8365b0 Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

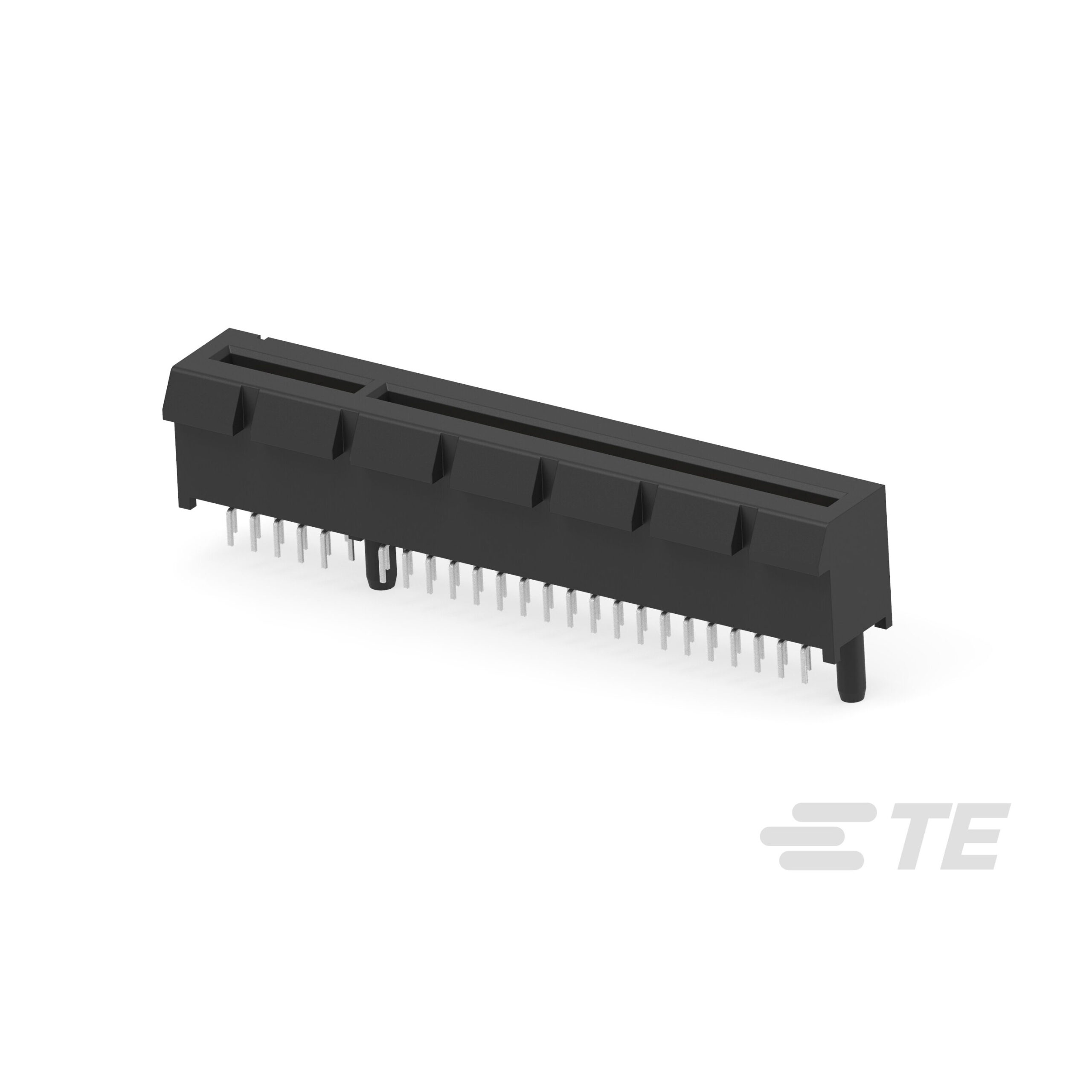

3-2362375-3 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is PCIE GEN4, 98POS ,G/F ,DIP ,3.1M. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 3-2362375-3

Description：PCIE GEN4, 98POS ,G/F ,DIP ,3.1M
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tray
Card Type：PCI Express™
Gender：Female
Number of Positions/Bay/Row：11; 38
Number of Positions：98
Card Thickness：0.062" (1.57mm)
Number of Rows：2
Pitch：0.039" (1.00mm)
Read Out：Dual
Features：Board Guide, Locking Ramp
Mounting Type：Through Hole
Termination：Solder
Contact Material：Phosphor Bronze
Contact Finish：Gold
Contact Finish Thickness：Flash
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 85°C

Edgeboard Connectors datasheet and documents for 3-2362375-3

3-2362375-3

Edgeboard Connectors Overview

The 3-2362375-3 is a PCI Express Gen4 edgeboard connector manufactured by TE Connectivity AMP Connectors. It features a 98-position female configuration with gold-plated contacts and a 1.00mm pitch. Designed for through-hole mounting, this black connector supports high-speed signal transmission in demanding electronic applications.

Edgeboard Connectors Feature Summary

Supports PCI Express Gen4 signal integrity standards
Gold-plated contacts ensure reliable electrical connection
Through-hole termination for secure PCB attachment

Edgeboard Connectors Applications

High-performance computing systems
Server backplane interconnects
Industrial automation control boards

Edgeboard Connectors Procurement Notes

Verify the specific revision level against the latest manufacturer datasheet to ensure compatibility with current design requirements. Confirm that the gold plating thickness meets the intended application's wear resistance needs. Cross-reference the pinout diagram with the mating header specifications to prevent installation errors during assembly.

Edgeboard Connectors Selection Notes

Select this component when a 98-position female edge connector is required for PCI Express Gen4 architectures. Ensure the PCB layout accommodates the 1.00mm pitch and through-hole drilling specifications. Evaluate mechanical retention requirements to confirm that the through-hole mounting style provides sufficient stability for the target environment.

Edgeboard Connectors Part Context

This part belongs to the PCIe Gen4 edge connector family from TE Connectivity. It serves as a critical interface between expansion cards and system backplanes. The design prioritizes signal integrity and mechanical durability for modern high-density electronic assemblies requiring robust connectivity solutions.
