302-124-656-201

Edgeboard Connectors Overview

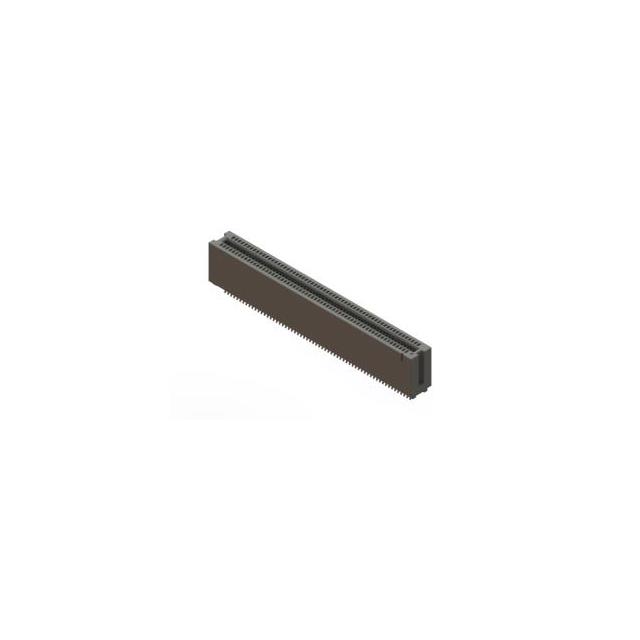

The EDAC Inc. 302-124-656-201 is a standard card edge connector from the 302 series, designed for dual-edge board applications. It features 124 positions with a female contact type and a 0.050 inch (1.27mm) pitch. The connector utilizes gold-plated contacts on a copper alloy base, housed in a black polyamide (PA66) insulator. It supports board thicknesses between 0.051 and 0.071 inches (1.30mm to 1.80mm). The component operates within a temperature range of -55°C to 85°C and employs a solder termination method for secure PCB mounting.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle design accommodates non-specified card types for versatile integration.
• Gold-plated cantilever spring contacts ensure reliable electrical connection and corrosion resistance.
• Black polyamide insulation provides structural stability and thermal endurance.
• Solder tail termination facilitates direct through-hole mounting on printed circuit boards.

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Consumer electronic module interfaces
• Medical device signal routing

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 124-position configuration and 1.27mm pitch before ordering. Confirm compatibility with the target card edge thickness range of 1.30mm to 1.80mm. Ensure the procurement channel provides genuine EDAC Inc. products to guarantee RoHS3 compliance and correct material specifications. Cross-reference the manufacturer product ID against distributor listings to avoid substitution errors.

Edgeboard Connectors Selection Notes

Select this model when a high-density dual-edge connector with fine 1.27mm spacing is required. The gold plating offers superior conductivity compared to tin alternatives, suitable for environments demanding long-term reliability. The PA66 housing supports the specified operating temperature range. Consider the physical dimensions and mounting style to ensure adequate clearance on the assembly layout.

Edgeboard Connectors Part Context

This component belongs to the EDAC 302 series, which specializes in card edge connectors with 0.050-inch contact spacing. The series is characterized by its robust construction and suitability for various industrial and commercial applications. The 302-124-656-201 variant specifically addresses high-pin-count requirements while maintaining the standard form factor associated with the series.

Edgeboard Connectors FAQ

What is the maximum operating temperature for this connector?

The connector is rated for an operating temperature range of -55°C to 85°C.

Does this connector support vertical or right-angle mounting?

The 302 series typically utilizes a straight, through-hole solder termination for board edge mounting.
