305-012-556-278

Edgeboard Connectors Overview

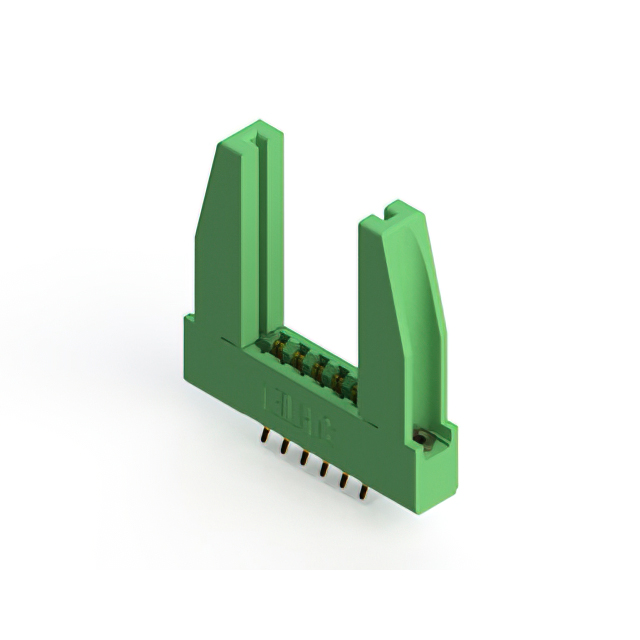

The EDAC Inc. 305-012-556-278 is a standard card edge connector from the 305 Series, designed for dual-edge board applications. It features 12 positions with a 3.96 mm (0.156 inch) pitch and supports a maximum PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts and solder pin termination for secure electrical connections. Rated at 5 A current capacity, it operates within a temperature range of -40°C to +105°C. The housing is constructed from green thermoplastic polyester, ensuring reliable insulation and mechanical stability in panel-mounted vertical configurations.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for non-specified card edge boards
• Gold-plated copper alloy contacts ensure durable signal transmission
• Thermoplastic polyester housing provides stable insulation properties
• Solder pin termination facilitates secure panel mounting

Edgeboard Connectors Applications

• Panel-mounted electronic interconnect systems
• Vertical circuit board interface modules
• Industrial control hardware connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB thickness limits before integration. Confirm RoHS compliance status through manufacturer datasheets. Validate thermal rating requirements against operational environment constraints. Cross-reference ordering numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 12 positions is required for vertical panel mounting. The 3.96 mm pitch suits standard board layouts requiring robust gold-plated contacts. Consider the thermoplastic housing material for general industrial environments. Verify that the 5 A current rating meets system power distribution needs. Ensure the solder pin termination method aligns with available assembly processes.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series of standard card edge connectors. The series offers various position counts and mounting styles for diverse electronic applications. Components in this line typically feature gold-plated contacts and thermoplastic housings for reliability. The 305 Series is widely used in industrial and commercial equipment requiring secure board-to-panel connections.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include EDAC 305-012-556-258 and 305-012-556-204. These alternatives share similar series characteristics but may differ in packaging or specific suffix attributes. Verify dimensional drawings and contact specifications before substitution.
