305-014-555-501

Edgeboard Connectors Overview

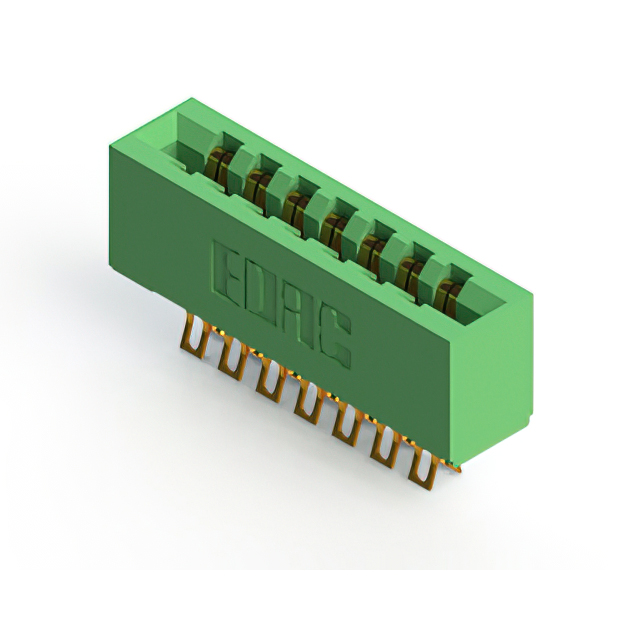

The EDAC Inc. 305-014-555-501 is a standard card edge connector from the 305 series, designed for dual female edgeboard applications. It features 14 positions with a 0.156-inch (3.96mm) pitch. The connector utilizes solder pin termination and gold-plated copper alloy contacts. It supports board thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). Operating temperatures range from -40°C to +105°C, with a current rating of 5A.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure edgeboard mating
• Gold-plated copper alloy contacts ensure reliable conductivity
• Solder pin termination provides robust PCB mounting
• Thermoplastic insulation housing offers structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Medical equipment interface modules
• Agricultural technology sensor connections
• General-purpose electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB board thickness limits before procurement. Confirm RoHS compliance status through official documentation rather than distributor summaries.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female connector with a 3.96mm pitch is required. Verify that the application environment falls within the specified temperature range. Ensure the mating card edge thickness aligns with the connector's mechanical constraints for proper retention.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its versatility in industrial and medical applications. Components in this line typically feature thermoplastic housings and gold-plated contacts for durability.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 305-series variants such as 305-014-555-258 or 305-014-521-501 if different termination or packaging options are needed. Verify pin count and pitch consistency before substitution.
