305-016-500-558

Edgeboard Connectors Overview

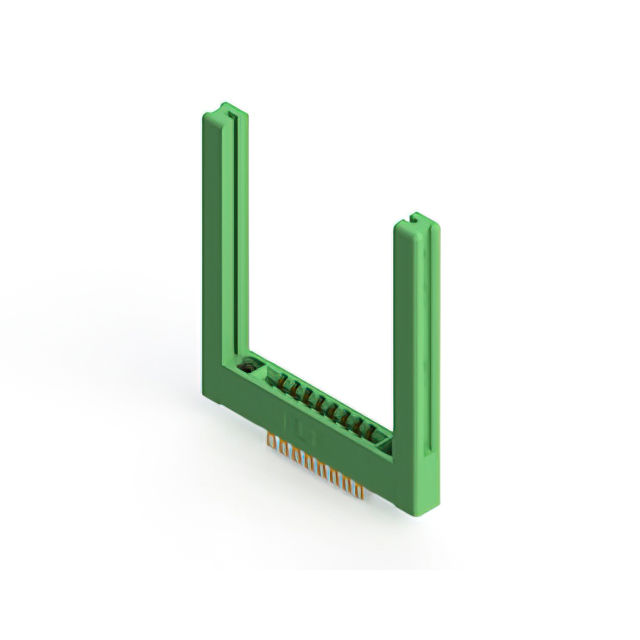

The EDAC Inc. 305-016-500-558 is a standard card edge connector from the 305 series, designed for vertical panel mounting. It features 16 positions with a 3.96 mm (0.156 inch) contact spacing and supports a nominal PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts with a solder lug termination type. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and employs a thermoplastic polyester insulator body compliant with UL 94V-0 standards.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration with solder lug termination
• Gold-plated copper alloy contacts for reliable signal transmission
• Thermoplastic polyester insulator body ensuring thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel interfaces
• Telecommunications equipment housing
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the vertical panel mount style aligns with the mechanical enclosure design requirements.

Edgeboard Connectors Selection Notes

Select this component when a vertical orientation and panel-mounting capability are required for card edge applications. The 3.96 mm pitch accommodates standard board layouts, while the 5 A rating suits moderate power distribution needs. Consider the solder lug termination for secure mechanical attachment during assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series, which offers various configurations for card edge connections. The series provides options for different row counts and mounting styles, catering to diverse electronic packaging requirements. The 305-016 variant specifically addresses applications needing 16 positions in a dual-row arrangement.

Edgeboard Connectors Replacement Considerations

Consult EDAC Inc. directly for verified substitute part numbers. Cross-reference with other manufacturers only if electrical and mechanical parameters match exactly.
