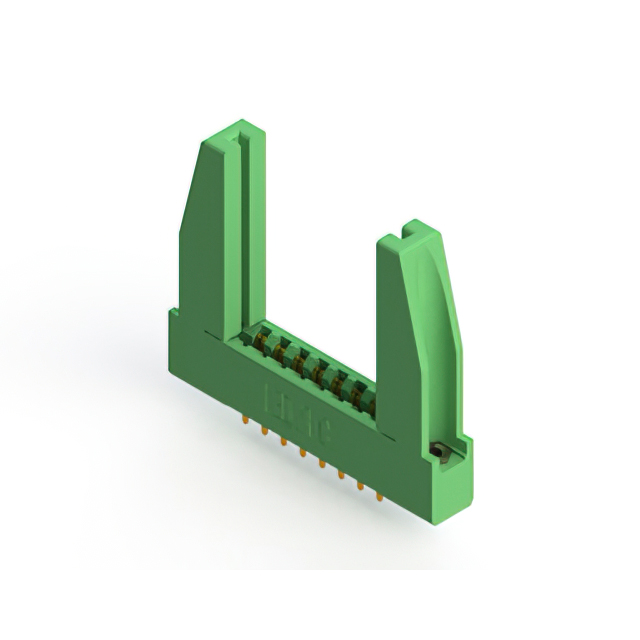

305-016-521-578

$7.51

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:ccaa891532f6 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-016-521-578 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-016-521-578

Description：CONN EDGE DUAL FMALE 16POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：8
Number of Positions：16
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-016-521-578

305-016-521-578

Edgeboard Connectors Overview

The EDAC Inc. 305-016-521-578 is a dual-edge female card edge connector from the 305 Series, designed for through-hole mounting. It features 16 positions with a 0.156-inch (3.96 mm) pitch and half-beehive contact type. The contacts are gold-plated copper alloy, while the insulator is green thermoplastic polyester. Rated for -40°C to +105°C, it supports board thicknesses of 0.054" to 0.070" (1.37mm to 1.78mm).

Edgeboard Connectors Feature Summary

Dual-edge female configuration with half-beehive contacts for secure insertion.
Gold-plated copper alloy contacts ensure reliable signal transmission.
Thermoplastic polyester insulator provides structural stability.
Through-hole termination facilitates robust PCB integration.

Edgeboard Connectors Applications

Industrial control systems requiring durable interconnects.
Medical equipment utilizing specialized connector solutions.
Agricultural technology hardware operating in harsh environments.

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact physical dimensions and material specifications. Ensure compatibility with target PCB board thickness ranges before procurement. Confirm RoHS compliance status via current manufacturer datasheets to meet regulatory requirements for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.156-inch pitch is required. Verify that the target printed circuit board thickness falls within the specified 0.054" to 0.070" range. Consider the through-hole mounting style and operating temperature limits of -40°C to +105°C for environmental suitability.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, which offers a comprehensive range of standard card edge connectors. The series includes various position counts and mounting options, catering to diverse electronic assembly needs across industrial, medical, and agricultural sectors with standardized form factors.
