305-016-555-501

Edgeboard Connectors Overview

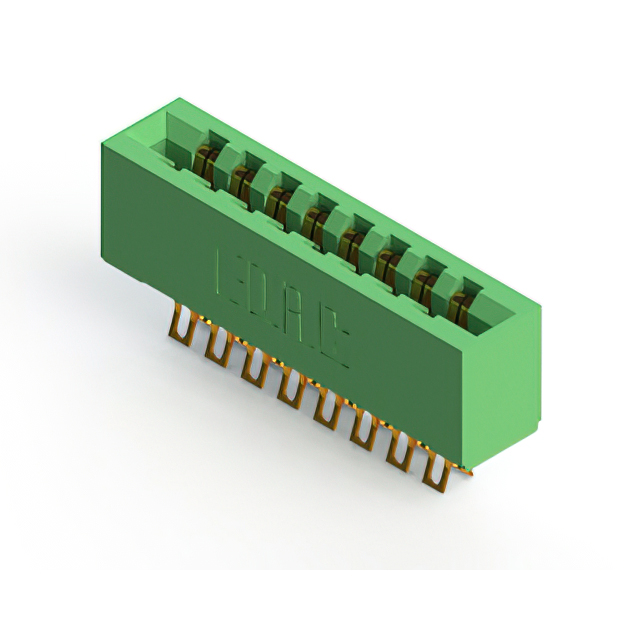

The EDAC Inc. 305-016-555-501 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 16 positions with a 0.156 inch (3.96 mm) pitch and supports a card thickness range of 0.054 to 0.070 inches (1.37 to 1.78 mm). The connector utilizes gold-plated copper alloy contacts with a half-beam termination style for reliable soldering. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C and includes a green thermoplastic insulator.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated half-beam contacts ensure stable electrical performance
• Thermoplastic insulator housing provides environmental durability
• Solder lug termination facilitates direct PCB mounting

Edgeboard Connectors Applications

• Industrial control system interconnects
• Medical device circuit board connections
• Agricultural technology equipment modules
• General-purpose electronic assembly integration

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with target PCB card thickness specifications before procurement. Cross-reference manufacturer datasheets for updated RoHS compliance status and lead time requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 3.96 mm pitch is required. Confirm that the application environment falls within the specified -40°C to +105°C operating range. Verify that the target circuit board thickness aligns with the 1.37 mm to 1.78 mm acceptance window for proper mechanical retention.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options for diverse electronic assembly needs. The 305-016 variant specifically addresses compact dual-row interface requirements in space-constrained designs.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult EDAC technical support for cross-referencing compatible alternatives if this specific model is unavailable.
