305-018-500-504

Edgeboard Connectors Overview

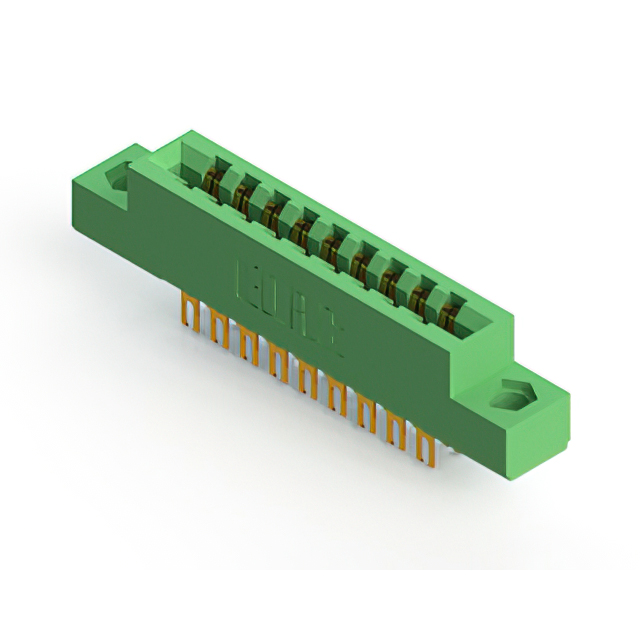

The EDAC Inc. 305-018-500-504 is a standard card edge connector from the 305 series, designed for dual-edge female connections. It features 18 positions with a 3.96 mm (0.156 inch) pitch and supports PCB thicknesses of 1.57 mm. The connector utilizes gold-plated copper alloy contacts and a thermoplastic housing. Rated for 5 A current, it operates within -40°C to +105°C and offers 5 GOhms insulation resistance.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic housing provides structural stability and insulation
• Panel mount design with vertical orientation for integration

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Computing hardware module interfaces
• Test and measurement device connectors

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB thickness tolerances before procurement. Confirm RoHS compliance status through manufacturer datasheets. Validate that the panel mount style aligns with enclosure requirements.

Edgeboard Connectors Selection Notes

Select this model for applications requiring dual-edge female connectivity with a 3.96 mm pitch. Consider the 5 A current rating and operating temperature range for environmental suitability. Verify that the panel mount installation style fits the mechanical design constraints. Compare position counts if higher density is required.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-018-500-504 variant specifically provides an 18-position configuration with dual-edge female contacts, suitable for robust electronic interconnections in demanding environments.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for verified substitute part numbers. Cross-reference position counts, pitch dimensions, and mounting styles to ensure mechanical and electrical compatibility. Verify that alternative models meet the same current and temperature ratings.
