305-022-520-207

Edgeboard Connectors Overview

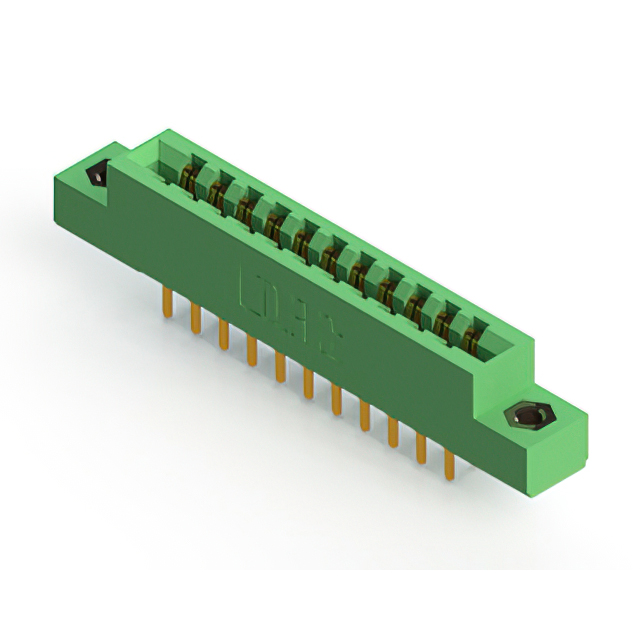

The EDAC Inc. 305-022-520-207 is a standard card edge connector from the 305 series, designed for vertical panel mounting applications. It features 22 positions with a contact spacing of 3.96 mm (0.156 inches) and a row spacing of 3.56 mm (0.140 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Contacts are made of copper alloy with gold plating, rated for 5 A current. The housing is constructed from thermoplastic material, providing an insulation resistance of 5 GOhms. Operating temperature ranges from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design with solder pin termination
• Gold-plated copper alloy contacts for reliable signal transmission
• Low profile insulator body compatible with standard board thicknesses

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules
• Automotive electronic control units

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or certified suppliers. Confirm RoHS compliance status and specific lot traceability requirements before procurement. Ensure storage conditions maintain thermal stability within specified limits to preserve contact integrity and housing properties during handling and installation phases.

Edgeboard Connectors Selection Notes

Select this model when a 22-position dual-edge connector with 3.96 mm pitch is required for vertical panel mounting. Verify that the target PCB thickness matches the 1.57 mm specification to ensure proper mechanical engagement. Consider the 5 A current rating and operating temperature range against system electrical and environmental demands.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts while maintaining consistent 3.96 mm contact spacing and 3.56 mm row spacing. These connectors are engineered for high-reliability applications in industrial and commercial electronics where secure board-to-panel connections are critical.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers such as 305-022-520-203 or 305-022-520-268 for alternative configurations within the same series. Verify identical pin count, pitch, and mounting style compatibility before substitution.
