305-022-521-512

Edgeboard Connectors Overview

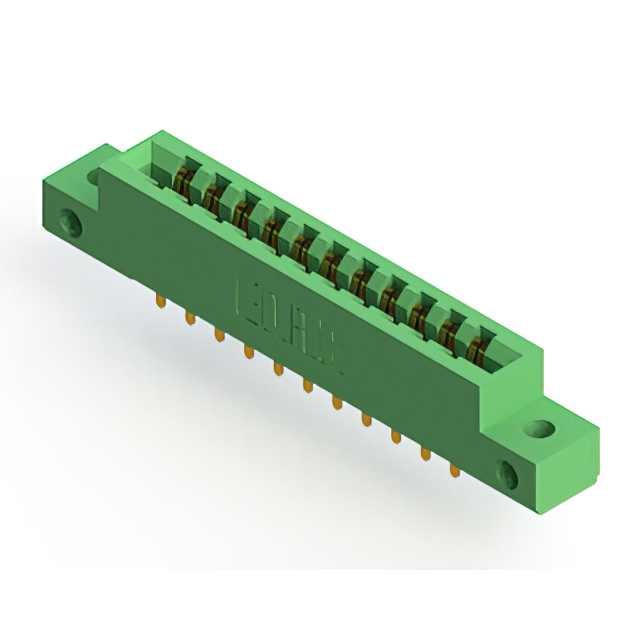

The EDAC Inc. 305-022-521-512 is a standard card edge connector from the 305 Series, designed for dual-edge board insertion. It features 22 positions with a 3.96 mm (0.156 inch) contact spacing and 3.56 mm row spacing. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with copper alloy contacts gold-plated for conductivity, it utilizes a green thermoplastic polyester insulator. Rated for 5 A current at +105°C maximum operating temperature, it offers 5 GOhms insulation resistance. The unit employs solder pin termination and supports vertical panel mounting.

Edgeboard Connectors Feature Summary

• Dual-edge design accommodates two-sided card edge PCBs for enhanced signal routing
• Low-profile insulator body reduces overall assembly height requirements
• Gold-plated copper alloy contacts ensure reliable electrical performance and corrosion resistance
• Vertical panel mount configuration provides secure structural integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnect solutions
• Medical equipment utilizing EDAC medical interconnect components
• Agricultural technology hardware exposed to harsh environments
• Automotive electronics demanding high reliability connectors

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact plating thickness, material composition, and mechanical tolerances. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm RoHS compliance status through manufacturer documentation. Validate that the vertical panel mount style aligns with the enclosure design constraints. Cross-reference the 22-position count with schematic requirements to prevent mismatch errors during assembly.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface is required with a 3.96 mm pitch. The 22-position capacity suits moderate-density applications. Verify that the 5 A current rating meets the circuit load requirements. Ensure the operating temperature range of -40°C to +105°C covers the environmental conditions. Confirm that the vertical orientation fits the available panel space and mating depth constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, a line of standard card edge connectors. The series includes various position counts and mounting styles. The 305-022-521-512 specifically denotes the 22-position variant with dual-edge capability. EDAC designs these connectors for durability in industrial and specialized sectors. The series maintains consistent dimensional standards across different configurations.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult EDAC technical support for potential equivalents.
