305-024-500-201

Edgeboard Connectors Overview

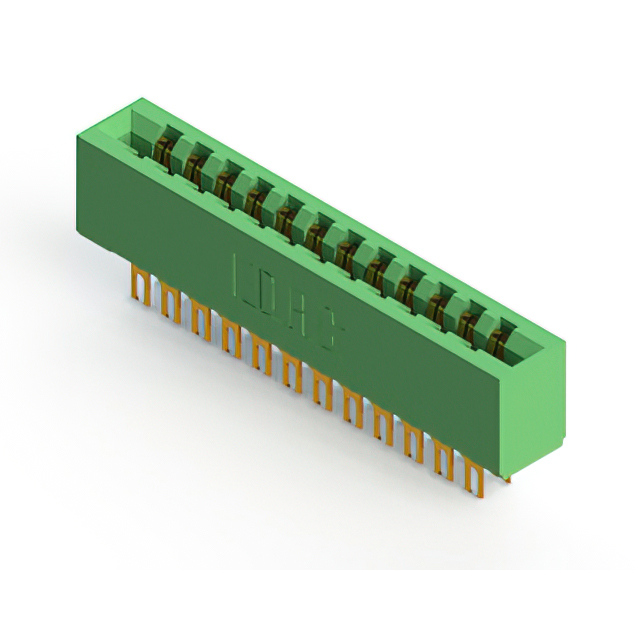

The EDAC Inc. 305-024-500-201 is a standard card edge connector receptacle featuring 24 positions in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and accommodates a board thickness of 1.57 mm. The component employs gold-plated copper alloy contacts with a solder termination type for PCB mounting. Designed for straight installation, it operates within a temperature range of -40°C to +105°C and supports a current rating of 5 A.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density signal routing
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic polyester insulator provides structural stability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Computing hardware module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target printed circuit board dimensions and mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-row interface with a 3.96 mm pitch is required. Confirm that the application environment stays within the specified -40°C to +105°C operating range. Validate that the 5 A current rating meets the electrical load requirements of the connected circuitry.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles, providing versatile solutions for connecting edge-board modules to main systems in electronic assemblies requiring robust mechanical and electrical connections.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Ensure any replacement maintains identical pitch, row count, and termination style to preserve mechanical fit and electrical performance.
