305-024-521-207

Edgeboard Connectors Overview

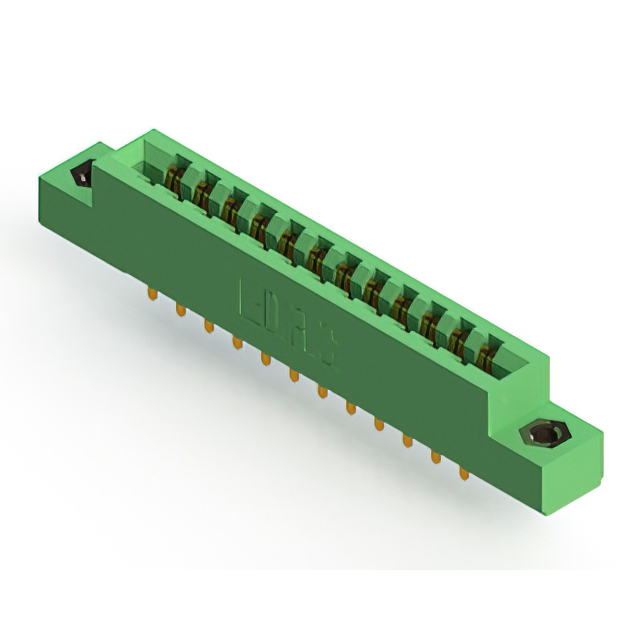

The EDAC Inc. 305-024-521-207 is a standard card edge connector designed for panel mounting applications. It features a dual female configuration with 24 positions and a pitch of 3.96 mm (0.156 inches). The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts with a solder pin termination style. Rated for 5 A current, it operates within a temperature range of -40°C to 105°C. The housing is constructed from green insulation material and includes flush mount flanges with top openings and M3 threaded inserts.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable card edge interface
• Panel mount design with vertical orientation and integrated flanges
• Gold-plated copper alloy contacts ensuring durable electrical performance
• Compatible with 1.57 mm thick circuit boards

Edgeboard Connectors Applications

• Industrial control panel interconnections
• Vertical board-to-board or backplane connections
• Electronic equipment requiring robust panel-mounted interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm compatibility with required flange types and termination styles. Ensure that the selected variant matches the intended board thickness and current rating requirements for the target application environment.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount card edge connector with 24 positions is required. Confirm that the 3.96 mm pitch aligns with the PCB layout and that the 1.57 mm board thickness specification meets the mechanical constraints of the assembly design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting configurations, providing standardized solutions for industrial and commercial electronic assemblies requiring secure vertical interconnects.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants such as 305-048-520-207 for different position counts. Verify mechanical dimensions and electrical ratings before substituting with generic equivalents.
