305-024-521-212

Edgeboard Connectors Overview

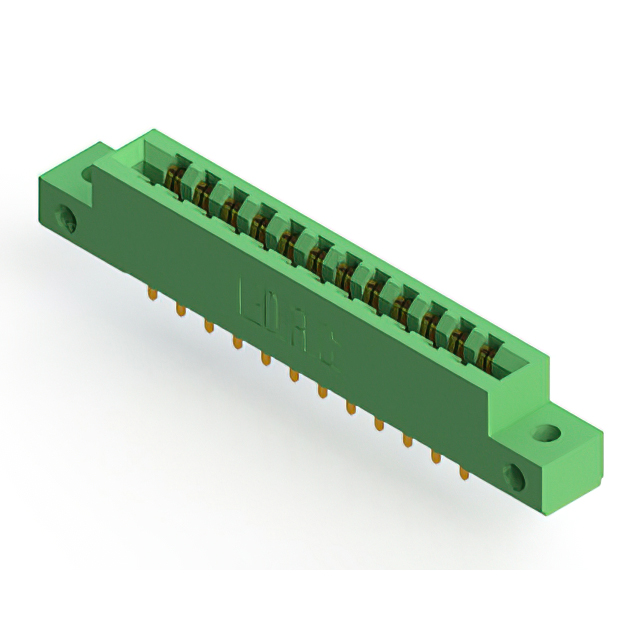

The EDAC Inc. 305-024-521-212 is a standard card edge connector from the 305 series, designed for panel mount applications. It features a dual row configuration with 24 positions and a pitch of 3.96 mm (0.156 inches). The connector accommodates PCBs with a thickness of 1.57 mm (0.062 inches) and utilizes gold-plated copper alloy contacts. Rated for 5 A current, it employs solder pin termination and a thermoplastic polyester housing. Operating temperatures range from -40°C to +105°C, with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual row contact configuration for high-density interconnects
• Gold-plated copper alloy contacts for reliable signal transmission
• Thermoplastic polyester housing providing thermal stability
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment interfaces
• Test and measurement instrumentation panels
• Automotive electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure correct contact plating and housing material specifications. Confirm that the 24-position dual row layout matches the target PCB footprint requirements. Check RoHS compliance status through manufacturer datasheets prior to integration into regulated environments.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel mount solution is required for 1.57 mm thick PCBs. Ensure the system design supports the 3.96 mm pitch spacing between contacts. Verify that the 5 A current rating aligns with the electrical load requirements of the application circuitry.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-024 variant specifically provides a compact dual-row interface suitable for space-constrained panel installations while maintaining industrial-grade durability.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include EDAC 305-024-521-202 and 305-024-521-278. Verify compatibility regarding contact termination type and housing material before substitution.
